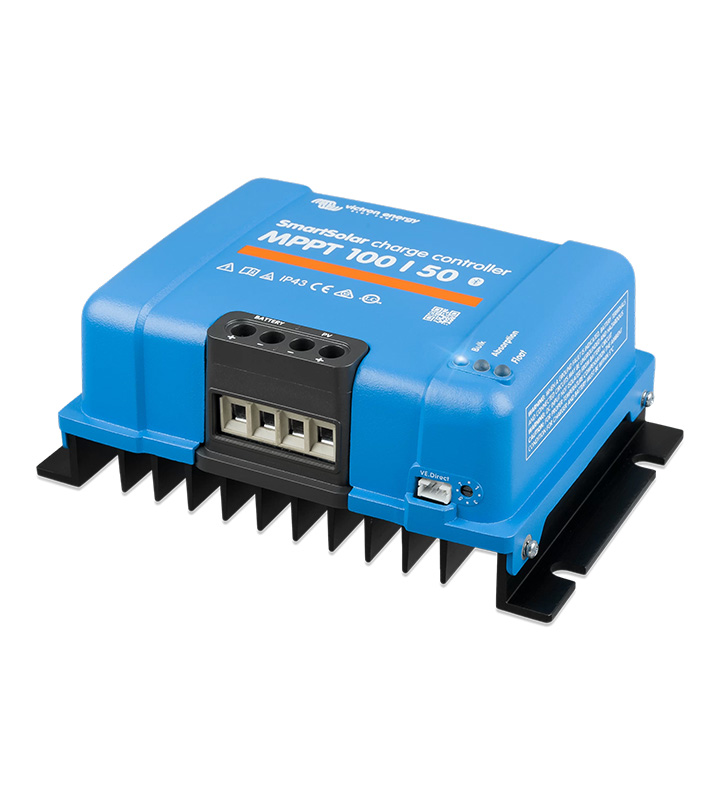

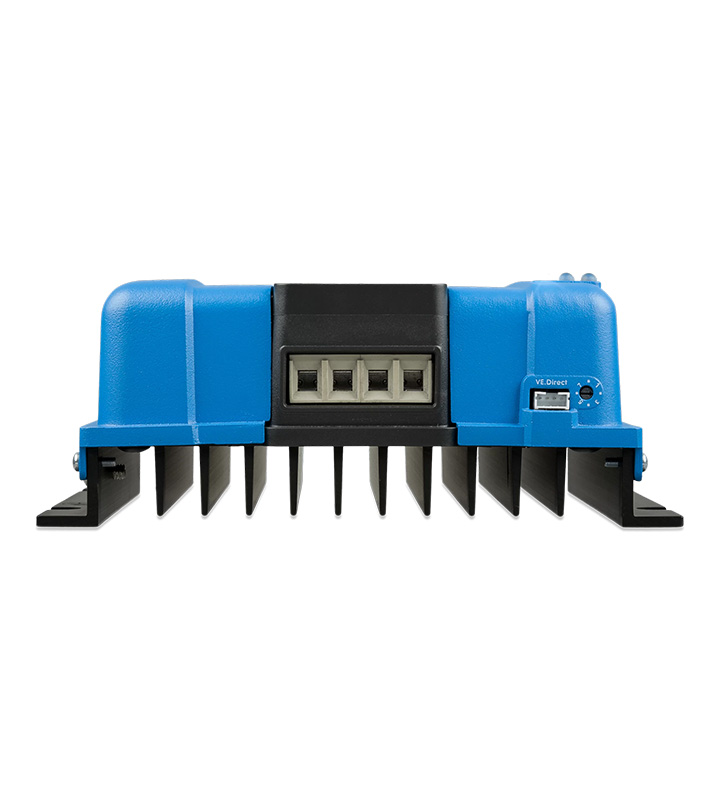

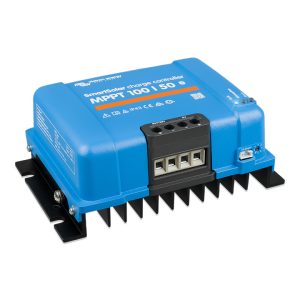

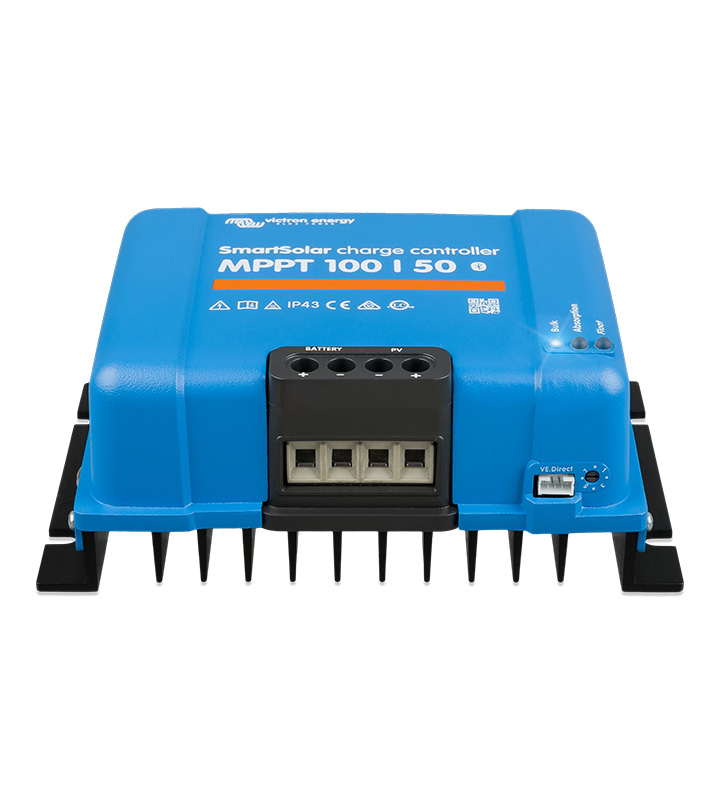

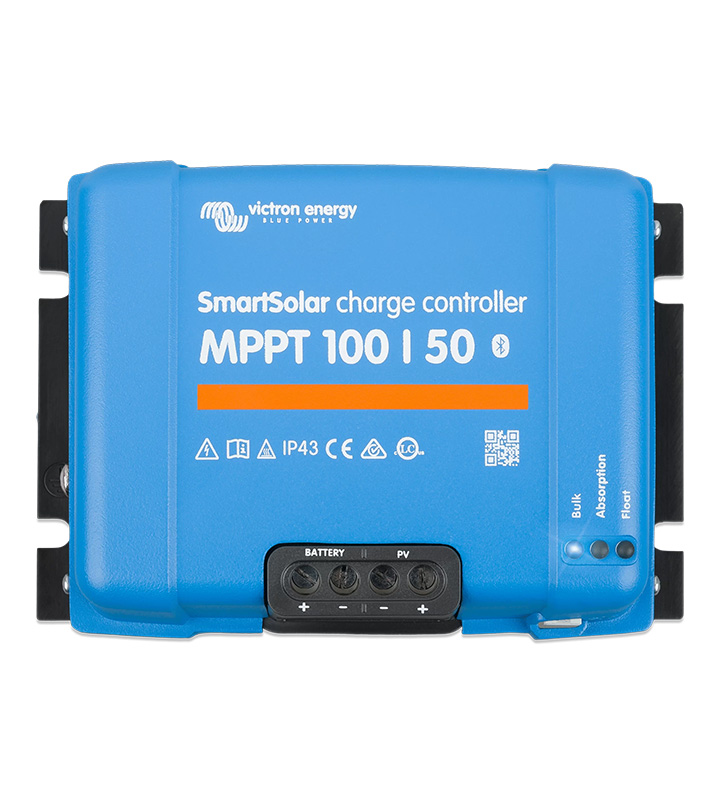

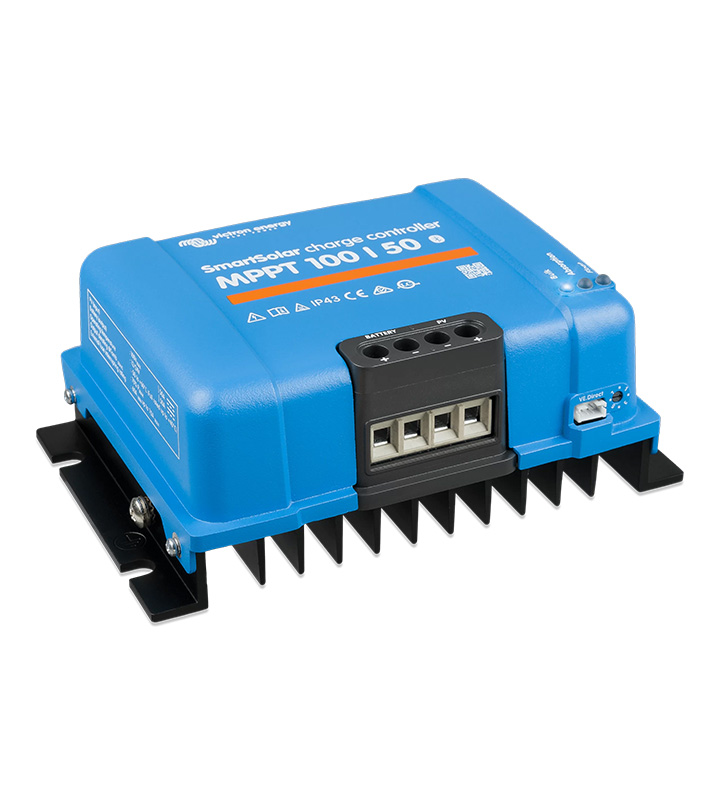

Victron SmartSolar MPPT 100/50A Controller

Victron MPPT SmartSolar 100/50A solar controller

The Victron SmartSolar MPPT 100/50A controller is a high-quality device designed for efficient management of solar systems. With a nominal charging current of 50 amps and compatibility with 12V and 24V batteries, it provides stable and reliable charging. The maximum input voltage of the solar panels is 100V, which allows flexibility in the selection of panels. With its compact dimensions of 130 x 186 x 70 mm and a weight of 1.3 kg, the controller is easy to install and integrate into various solar installations.

The controller uses an advanced MPPT algorithm that optimizes the performance of solar panels. It increases charging efficiency by up to 30% compared to traditional PWM controllers. It has built-in Bluetooth for wireless control and monitoring via a mobile application, which makes it easy to set up and monitor the system. Additionally, the controller offers a programmable relay for alarms and other events that can be configured via a mobile application.

Advantages of the Victron SmartSolar MPPT 100/50A solar controller

• Ultra-fast Maximum Power Point Tracking (MPPT): The controller provides fast and accurate maximum power point tracking, which increases charging efficiency by up to 30% over traditional PWM controllers.

• Flexible charging algorithm: Offers 8 preset settings that can be selected via a rotary switch, allowing adaptation to different battery types and system requirements.

• Intelligent battery management: Automatically adjusts charging voltage and current according to battery condition, ensuring long life and optimal charging.

Additional features of the Victron SmartSolar MPPT controller

• Built-in temperature sensor: Compensates charging voltage depending on ambient temperature, which contributes to extending battery life.

• Programmable relay: Allows setting of alarms or other events that can be configured via a mobile app.

• Remote Control: Using the VE.Direct Bluetooth Smart dongle, users can monitor and control the controller via mobile devices.

The Victron SmartSolar MPPT 100/50A controller is an ideal choice for solar systems that require high efficiency and reliability. With its advanced features and easy integration, it provides optimal energy management and extends the life of your batteries.

Warranty period: 5 years
