Victron SmartSolar MPPT 75V/15A controller
Original price was: 86,41 €.81,60 €Current price is: 81,60 €. VAT included(≈ 159.60 лева)
SKU: 12345-009-2
Categories: MPPT, Controllers
Tags: Victron, MPPT, 15A, no display, solar controller

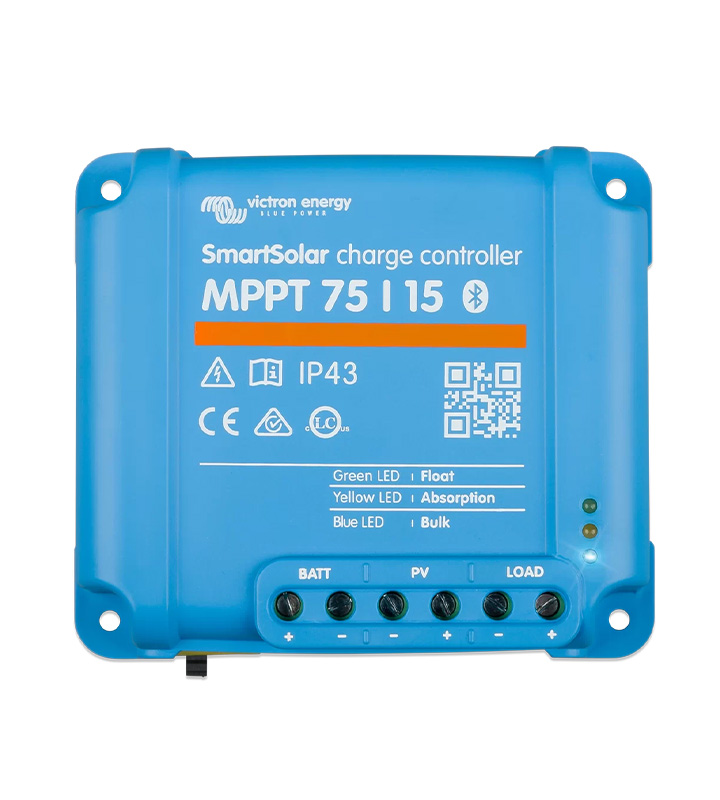

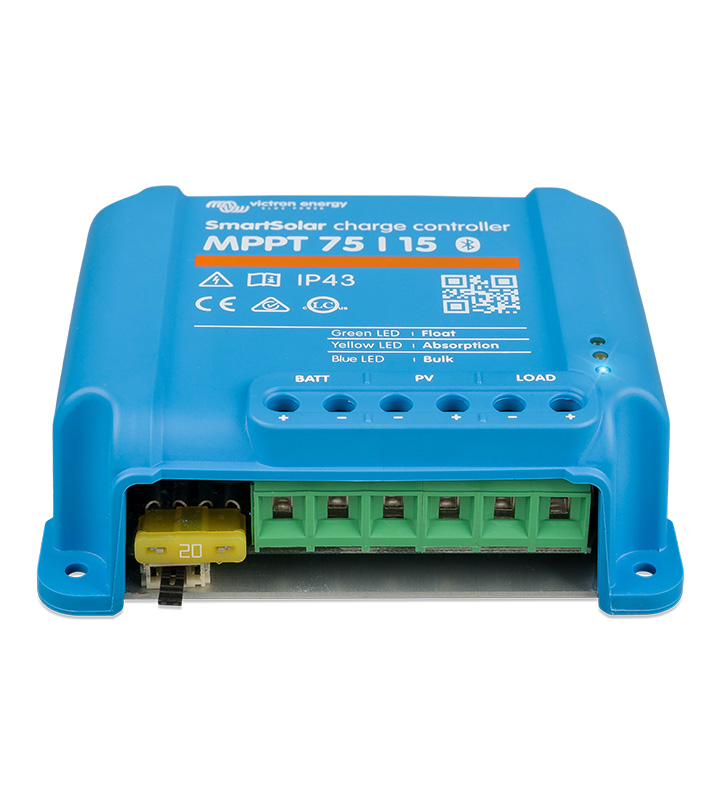

Victron SmartSolar MPPT 75V/15A solar controller
The Victron SmartSolar MPPT 75V/15A controller is a high-quality device designed for efficient management of solar systems. With a maximum input voltage of 75V and an output current of 15A, it provides stable and reliable battery charging. With its compact dimensions of 100 x 113 x 40 mm and a weight of 0.5 kg, it is easy to install and integrate into various solar installations.
The controller uses an advanced MPPT algorithm that optimizes the performance of solar panels, increasing charging efficiency by up to 30% compared to traditional PWM controllers. It has a built-in temperature sensor for automatic charging compensation depending on the ambient temperature, which contributes to extending battery life.
Advantages of the Victron SmartSolar MPPT 75V/15A solar controller
-
Ultra-fast Maximum Power Point Tracking (MPPT): The controller provides fast and accurate maximum power point tracking, which increases charging efficiency by up to 30% over traditional PWM controllers.
-
Flexible charging algorithm: Offers 8 preset settings that can be selected via a rotary switch, allowing adaptation to different battery types and system requirements.
-
Intelligent battery management: Automatically adjusts charging voltage and current according to battery condition, ensuring long life and optimal charging.
Additional features of the Victron SmartSolar MPPT controller
-
Built-in temperature sensor: Compensates charging voltage depending on ambient temperature, which contributes to extending battery life.
-

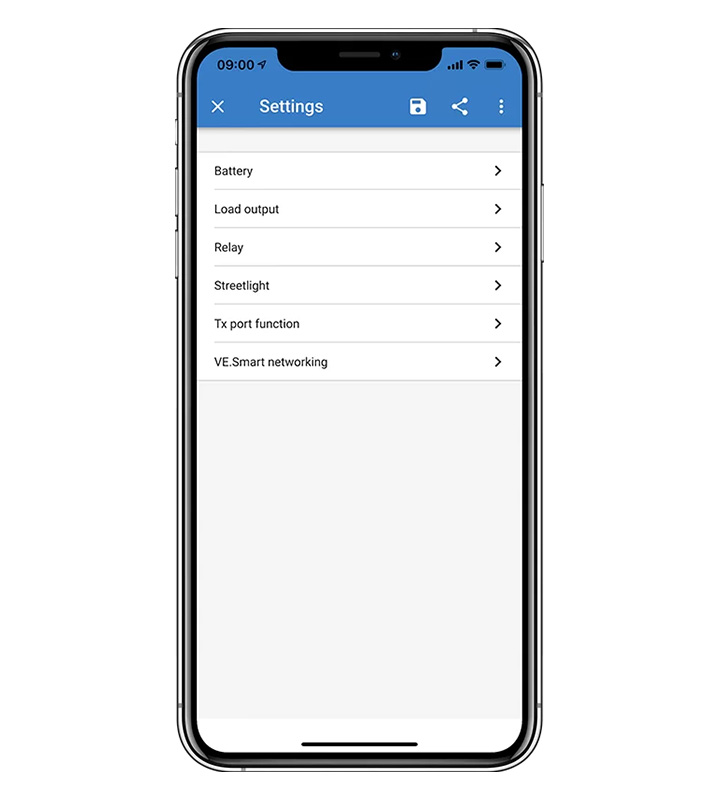

Programmable relay: Allows setting of alarms or other events that can be configured via a mobile app.
-

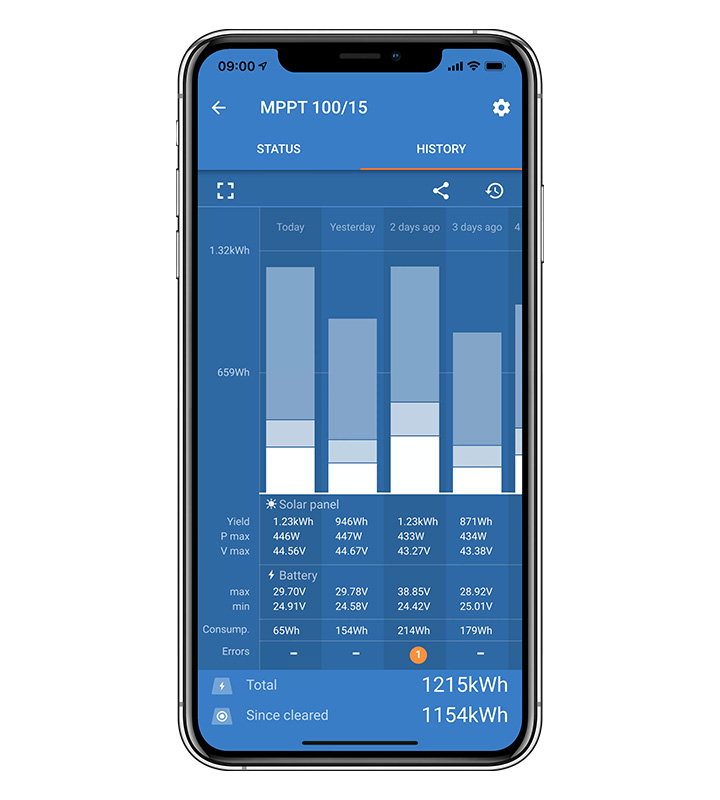

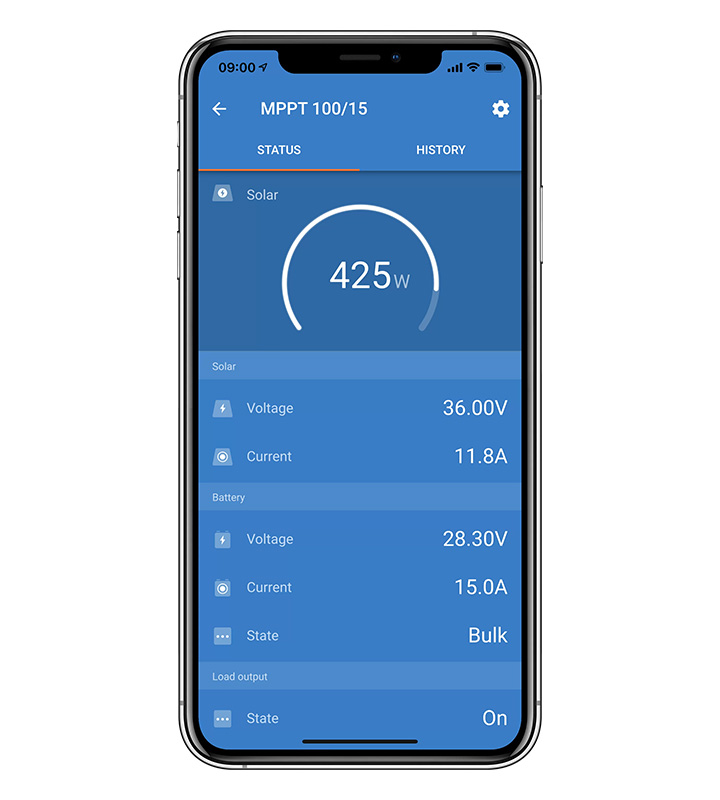

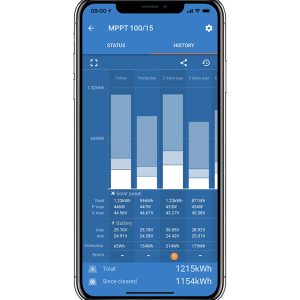

Remote Control: Using the VE.Direct Bluetooth Smart dongle, users can monitor and control the controller via mobile devices.
The Victron SmartSolar MPPT 75V/15A controller is an ideal choice for solar systems that require high efficiency and reliability. With its advanced features and easy integration, it provides optimal energy management and extends the life of your batteries.
Warranty period: 5 years
| Weight | 0,62 kg |
|---|---|
| Dimensions | 15 × 5 × 15 cm |
| Option | without Bluetooth, with Bluetooth |
| manufacturer |
Specifications
- Voltage: 12/24V automatic selection
- Maximum current: 15 A
- Maximum power (12V): 200W (MPPT 15V-70V)
- Maximum power (24V): 400W (MPPT 30V-70V)
- Automatic shutdown of the load (max. load 15 A): Yes
- Max. voltage Voc: 75 V
- Efficiency (maximum): 98.00%
- Own consumption: 10 mA
- Absorbing voltage: 14.4 V/ 28.8 V
- Charge voltage “float”: 13.8V/ 27.6V
- Loaded algorithm: multi-level adaptive
- Temperature compensation: -16 mV/°C … -32 mV/°C
- Rated current: 15 A
- Load cut-off voltage: 11.1 V/ 22.2 V/ 44.4 V or 11.8 V/ 23.6 V/ 47.2 V
- Load switch-on voltage: 13.1 V/ 26.2 V/ 52.4 V or 14 V/ 28 V/ 56 V
- Protection (of electronic elements): IP43
- Weight: 500 g
- Dimensions (WxDxH): 100 x 113 x 40 mm
Documentation
Technical characteristics – EN
Installation and use instructions – EN
Video instructions
Certificate of Conformity
Technical characteristics – BG
Installation and use instructions – BG
