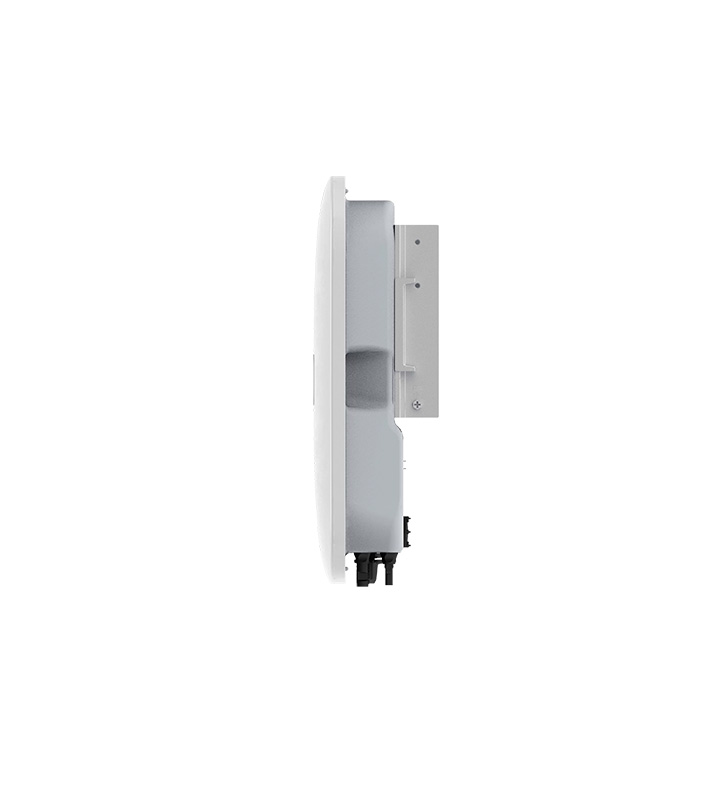

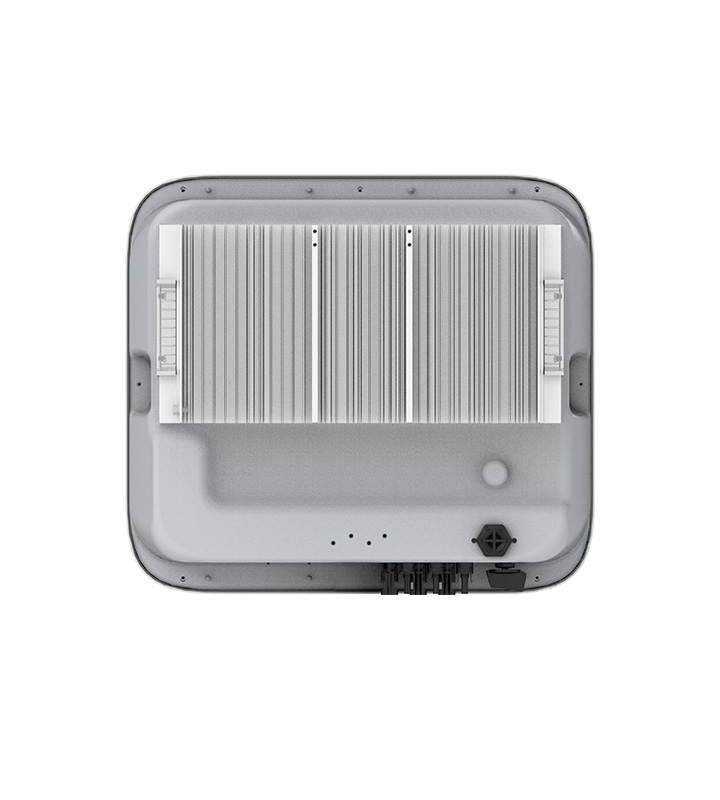

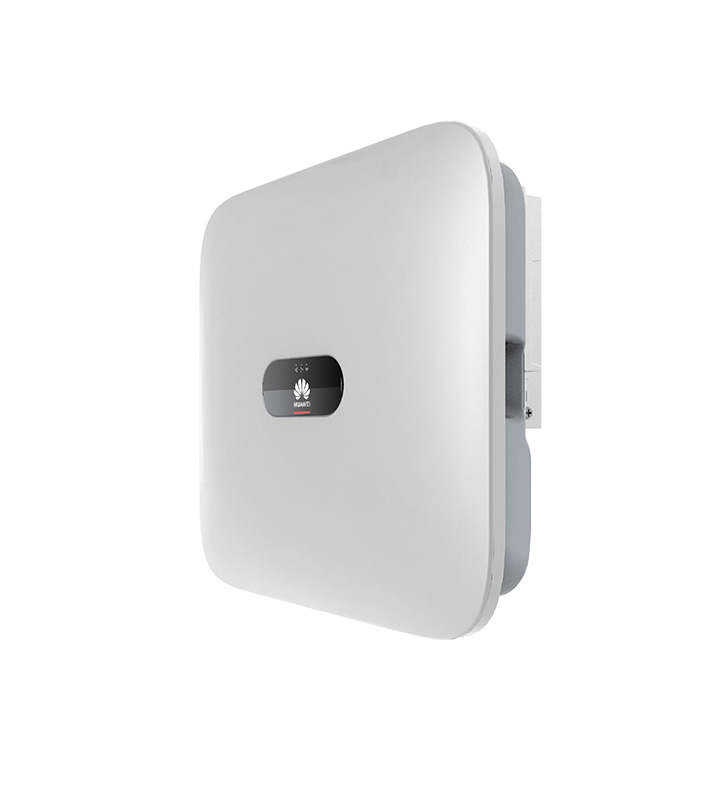

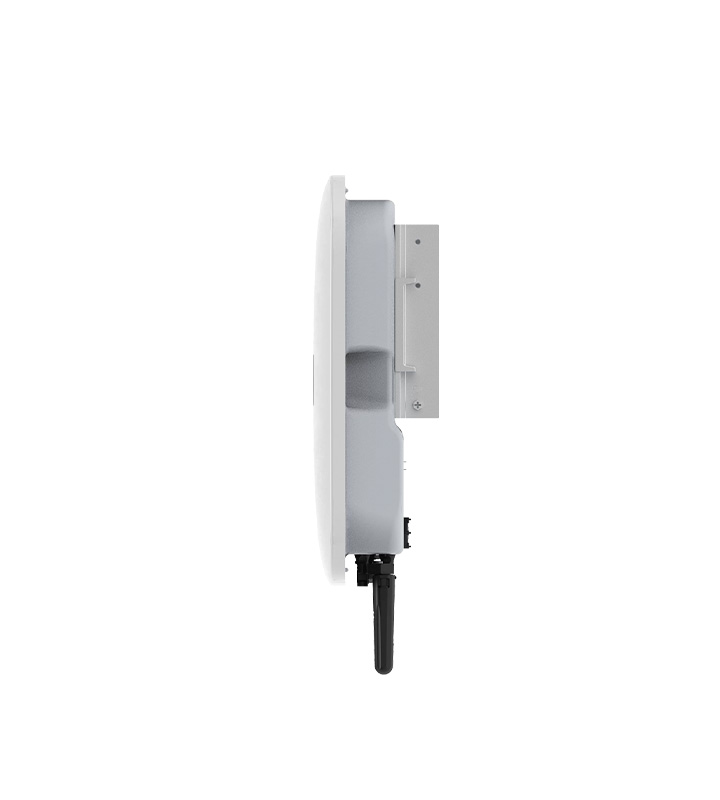

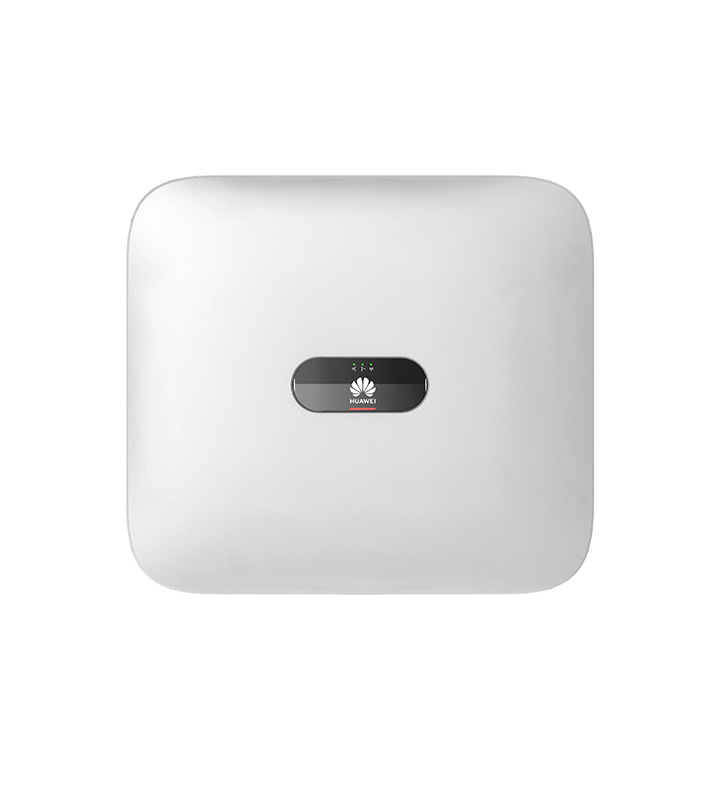

Inverter Huawei 12kW SUN2000-12KTL-M2, Grid-type
Huawei 12kW SUN2000-12KTL-M2 inverter is a three-phase grid-tie inverter with a rated power of 12 kW, designed for efficient conversion of solar energy into electricity. It features two MPPT trackers that allow optimal tracking of the maximum power point, ensuring higher efficiency under different lighting conditions. The maximum input voltage is 1080 V, and the MPPT operating range is from 160 V to 950 V, making it compatible with various photovoltaic configurations.
The inverter supports a maximum input power of 18 kW and has a maximum input current of 22 A on MPPT. Its maximum efficiency reaches 98.5%, which ensures minimal energy losses during conversion. With a protection rating of IP65, the device is resistant to dust and water, making it suitable for outdoor installation. Its dimensions are 525 x 470 x 262 mm, and its weight is 25 kg, which facilitates installation and integration into various systems.
Advantages of Huawei 12kW SUN2000-12KTL-M2 inverter
One of the key advantages of this inverter is the active protection against electric arc, managed by artificial intelligence, which significantly reduces the risk of fire and increases the safety of the system. The possibility of using optimizers allows the installation of more photovoltaic modules on the roof and up to 30% more energy production through optimization of each module. The absence of quick-wear components and the low failure rate (below 0.5%) guarantee a long service life and reliability.
Additional features and applications
The inverter supports communication via RS485, WLAN, Ethernet and optional 4G, which facilitates system monitoring and management. The wide operating temperature range from -25°C to +60°C and the ability to operate at altitudes up to 4000 m make it suitable for various climatic conditions and environments. Със своята висока ефективност, надеждност и усъвършенствани функции за безопасност, Huawei SUN2000-12KTL-M2 е отличен избор за мрежови фотоволтаични инсталации.
Smart
- 2 MPP trackers for the most flexible system possible – different modules, different slopes, shaded areas, etc.
- 4 strings – intelligent monitoring and quick detection of the problem
- RS485 and USB ports for quick connection to the inverter
- Export Limitation option (requires electricity meter) – limiting the return of excess energy to the grid
- Built-in online monitoring through the Fusion Solar platform
Safe
- Built-in DC disconnector, safe and convenient for maintenance and operation
- Type II Cathodic Drain for DC and AC side
- Protection against bad grounding
- Residual Current Detection (RCD) protection
Effective
- Maximum efficiency of 98.5%
- Easy to install with a weight of 25 kg
Reliable
- Passive cooling, no need for fans
- Protection IP65
- Warranty period: 10 years, with a paid option to extend to 20 years

Huawei provides advanced photovoltaic technology manufactured for direct use, especially in the small scale of residential, commercial and local power plants. Enables ongoing optimization from construction through operation to maintenance. The integration of digital information and Internet technology is a guarantee for optimizing initial investments, reducing operation and maintenance costs, increasing energy efficiency and a more favorable return on investment.
Huawei’s flagship product in the field of advanced residential and commercial photovoltaic technology is FusionSolar. It consists of Huawei photovoltaic converters, optimization tools, protection devices, current sensors and external communication modules. To monitor and manage the operation of the photovoltaic plant, the FusionSolar applications and the intelligent FusionSolar control system are available to the operators. The SUN2000APP application and Web UI internet software help to handle the installation and commissioning of the solar inverters and other Huawei technologies.
