Hybrid inverter Deye SUN 25kW - 25K - SG01HP3-EU-AM2, three-phase

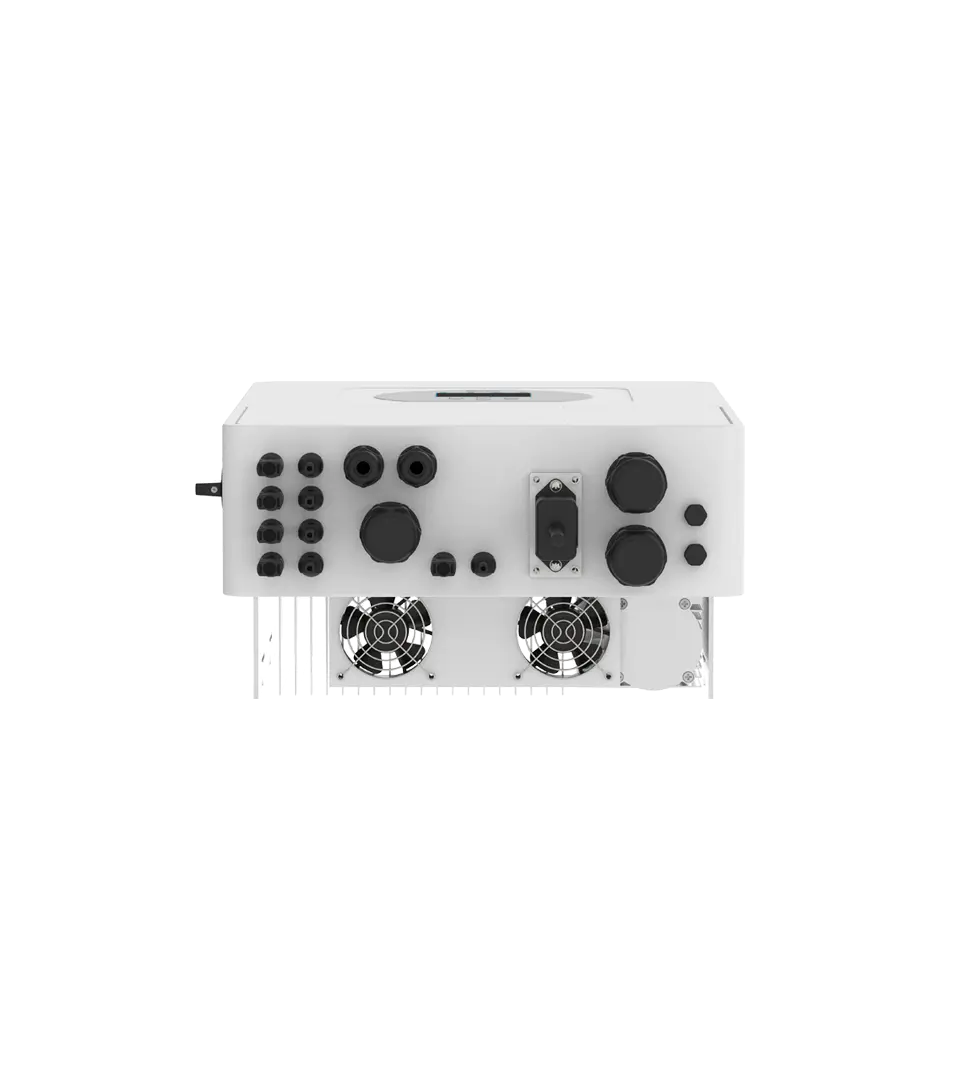

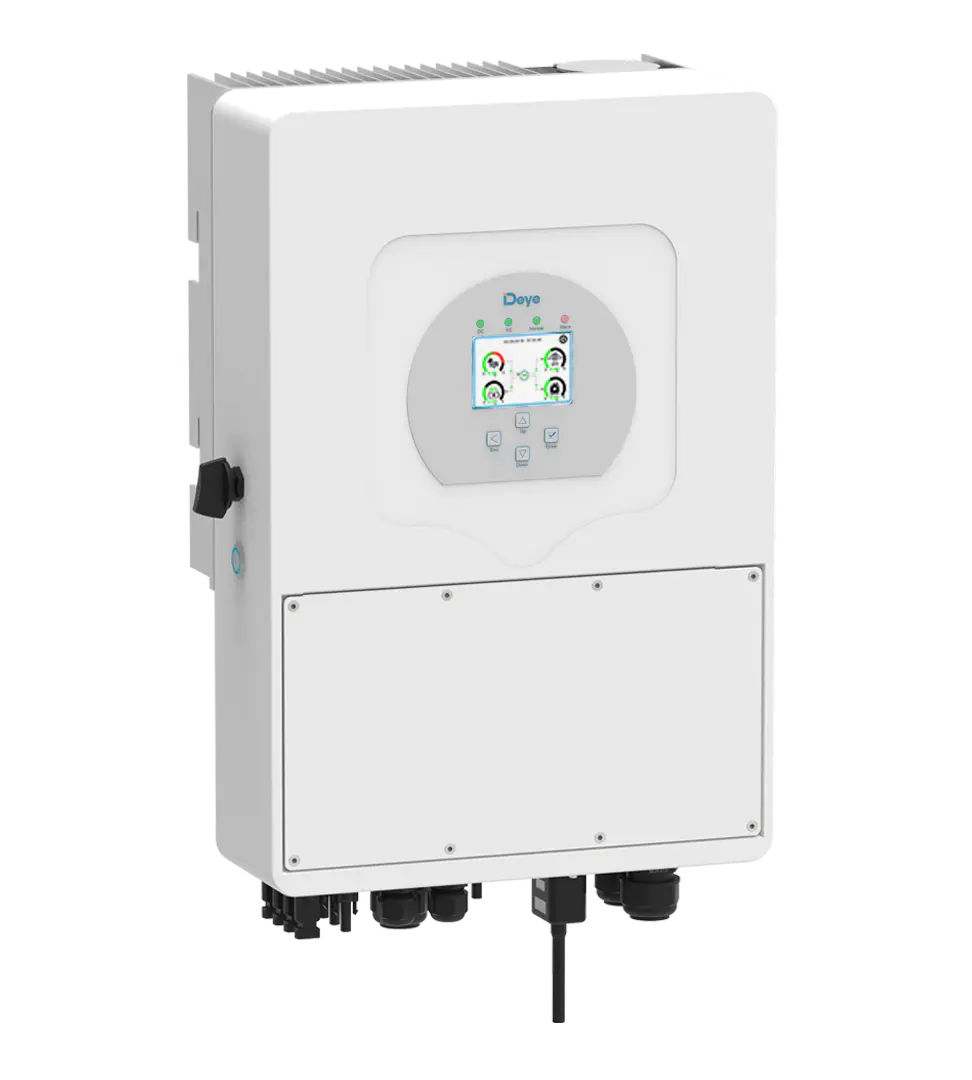

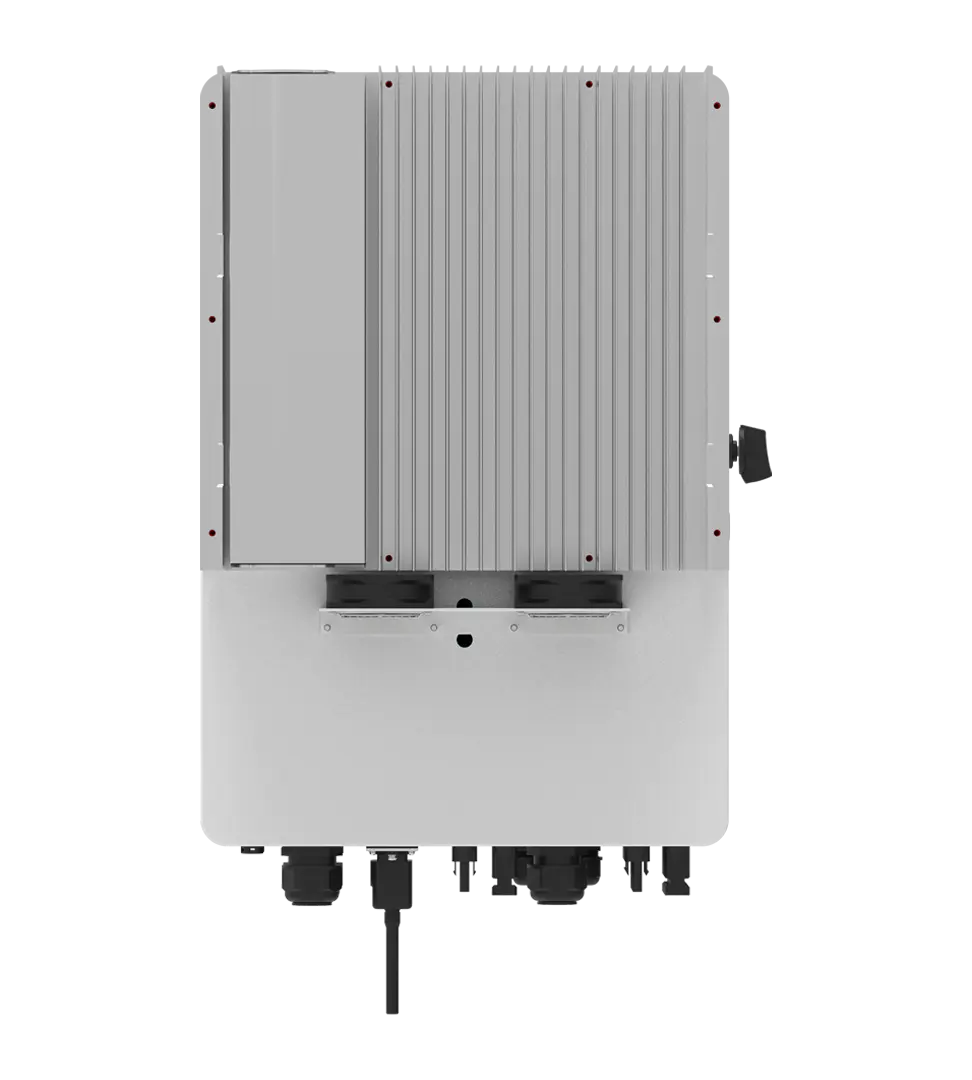

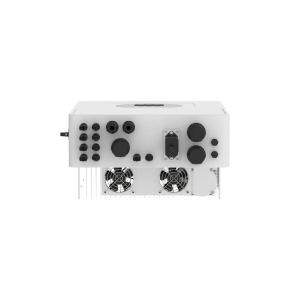

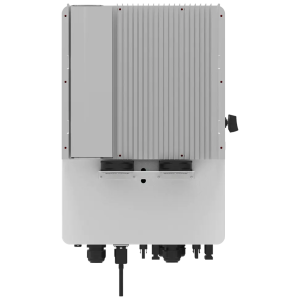

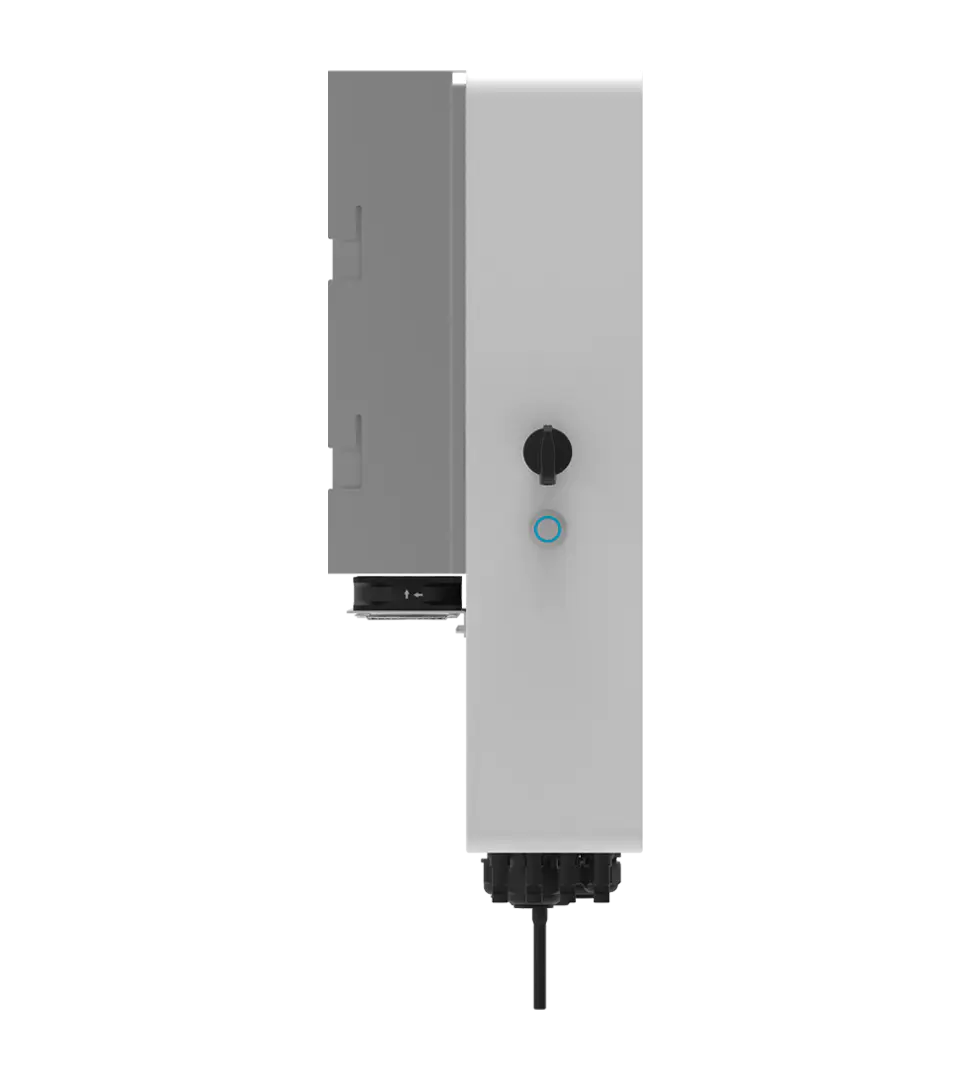

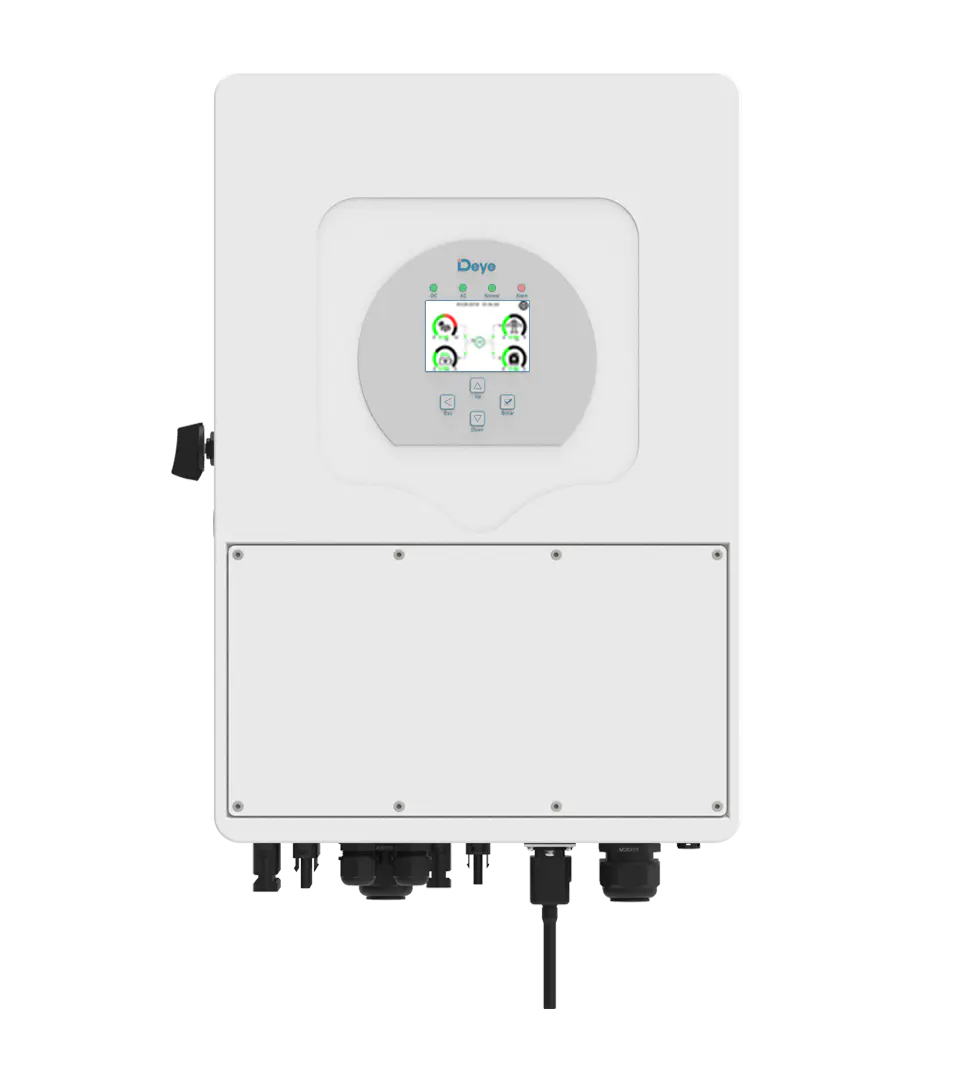

Hybrid inverter Deye SUN 25kW - 25K - SG01HP3-EU-AM2, three-phase - Image 2

Hybrid inverter Deye SUN 25kW - 25K - SG01HP3-EU-AM2, three-phase - Image 3

Hybrid inverter Deye SUN 25kW - 25K - SG01HP3-EU-AM2, three-phase - Image 4

Hybrid inverter Deye SUN 25kW - 25K - SG01HP3-EU-AM2, three-phase - Image 5

Hybrid inverter Deye SUN 25kW – 25K – SG01HP3-EU-AM2, three-phase

Name: Hybrid inverter Deye SUN 25kW - 25K - SG01HP3-EU-AM2, three-phase
SKU: 77938
Availability: InStock

Original price was: 2576,91 €.Current price is: 2318,71 €. VAT included(≈ 4,535.00 лева)

Deye SUN – 25K- SG01HP3 – EU – AM2 is a brand new three-phase hybrid inverter with high voltage battery, ensuring a safe and reliable system.

Buy with

13 x €213.30 (13 x 417.18 лв.)

Categories: Hybrid inverters, Inverters Tags: Deye, 25K, 25kWh, Inverter, three-phase, hybrid

Main features of the hybrid inverter Deye SUN 25kW – 25K – SG01HP3-EU-AM2, three-phase

The Deye SUN 25kW – 25K – SG01HP3-EU-AM2 hybrid inverter is a powerful and reliable solution for three-phase photovoltaic systems. It is designed for efficient conversion and management of solar energy, providing high efficiency and stability. The inverter is compatible with high-voltage batteries and supports various operating modes, including grid-connected and off-grid operation. This makes it ideal for residential, commercial and industrial installations.

With its rated capacity of 25,000 W and maximum efficiency of up to 98.4%, the inverter ensures optimal use of solar energy. It has built-in Wi-Fi and RS485 control, which allows remote monitoring and analysis of system performance. In addition, the wide MPPT range (150V – 850V) ensures stable and flexible operation in various photovoltaic panel configurations.

Reliability and protection of solar hybrid inverter Deye SUN 25kW

Hybrid inverter Deye SUN 25kW – SG01HP3-EU-AM2 is designed to work in harsh conditions. It has IP65 protection, which makes it resistant to dust, moisture and rain. The operating temperature range from -40°C to +60°C ensures reliability in all weather conditions. The inverter has overvoltage, overload and short circuit protection functions, which guarantees a long life and safe operation.

Efficiency and smart management

The inverter has an advanced energy flow management algorithm, which improves the efficiency of the system. Built-in Wi-Fi and RS485 communication allows remote control and monitoring via a mobile application or computer. This facilitates maintenance and ensures optimal system operation. The inverter can also work with different types of batteries, which further increases its flexibility.

Deye Group was established in 2000. The company provides a full range of photovoltaic power generation solutions, including residential and commercial power plant solutions, as well as providing solar energy storage system solutions. The company currently has three production bases in Beilun and Cixi, Ningbo, covering an area of 388 acres and a production area of over 400,000 square meters, and its production value will exceed RMB 13 billion in 2023. Ningbo Deye Energy Storage Technology Co., Ltd., as a subsidiary of Deye, is committed to creating better energy storage products for the world and becoming the world’s leading energy storage system provider.

Weight	30,5 kg
Dimensions	41 × 64 × 24 cm
Power	15kw, 20kw
manufacturer	Deye
Power	25 KW
inverter type	Hybrid Inverters
Тип	Three-phase
Инвертори - Low & High Voltage	High Voltage

Specifications

Model SUN-25K-SG01HP3-EU-AM2

Battery input data.

Battery Type – Lithium-ion
Battery voltage range (V) – 160-700
Max. Charging current (A) – 50
Max. Discharge current (A) – 50
Li-ion Charging Strategy – Self-Adapting to BMS
Battery Number of inputs – 1

Batteries PV string Incoming.

Data Max. PV input power (W) – 32500
Max. PV input voltage (V) – 1000
Starting voltage (V) – 180
MPPT voltage range (V) – 150-850
Nominal PV input voltage (V) – 700
Max. Operating PV input current (A) – 26+26
Max. Input short circuit current (A) – 39+39
Number of MPP trackers/ Number of strings per MPP tracker – 2/2+2

AC input/output data

Nominal AC input/output active power (W) – 25000
Max. AC Input/Output Apparent Power (VA) – 27500
Rated AC input/output current (A) – 37.9/36.3
Max. AC input/output current (A) – 41.7/39.9
Max. Three-phase unbalanced output current (A) – 41.7
Max. Continuous AC pass (charging network) (A) – 80
Peak power (off-grid) (W) – 1.5 times the rated power,
Power factor adjustment range 10s 0.8 leading to 0.8
Power Rated input/output voltage/range (V) – lagging 220/380V, 230/400V 0.85Un-1.1Un
Nominal frequency/range of the input/output network (Hz) – 50/45-55, 60/55-65
Network connection form – 3L+N+PE
Current Total Harmonic Distortion THDi – <3% (of rated power)
DC injection current – <0,5% In

Efficiency

Max. Efficiency – 97.60%
Euro efficiency – 97.00%
MPPT Efficiency – 99.90%

Safety

MPPT Efficiency – 99.90%
Protection against islands – Integrated
Protection against reverse polarity at the PV string input – Integrated
Isolation Resistor Detection – Integrated
Residual Current Monitoring Unit – Integrated
Output overcurrent protection – Integrated
Short output protection – Integrated
Surge protection – Integrated

General information
Operating temperature range (℃) – -40~60℃, >45℃ Reduction
Cooling – Intelligent Cooling
Noise (dB) – <55 dB Weight (kg) - 30.5kg. Size (mm) - 408W x 638H x 237D
