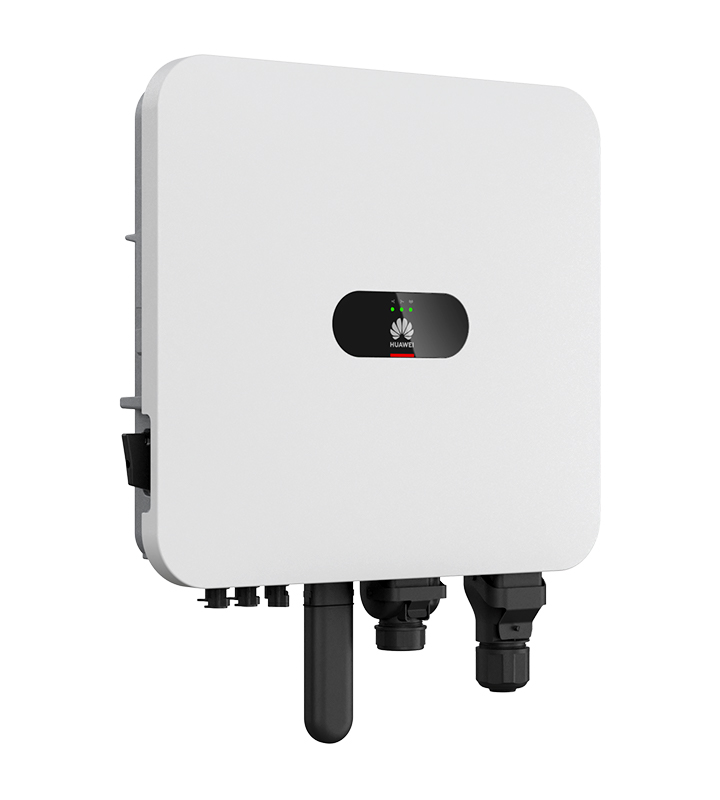

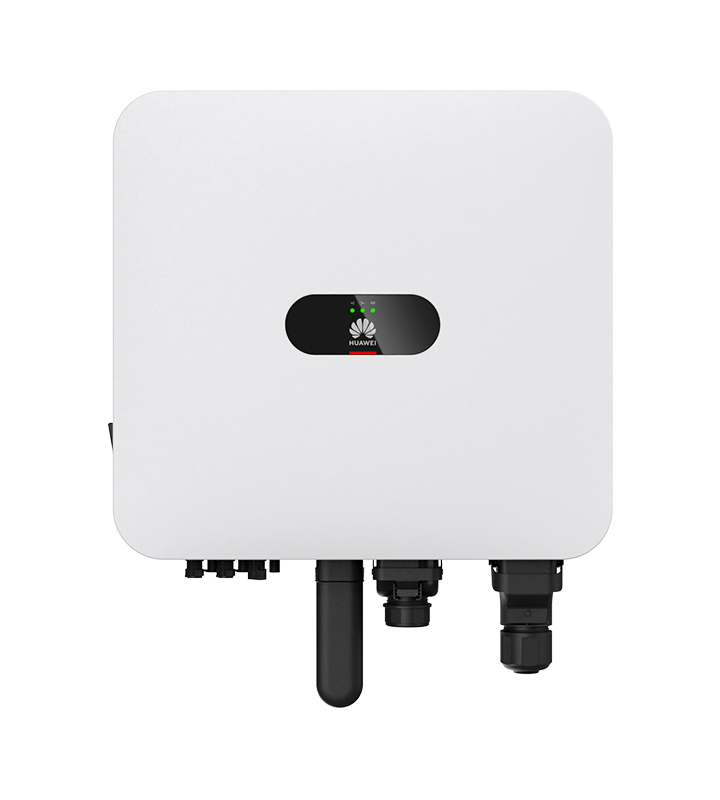

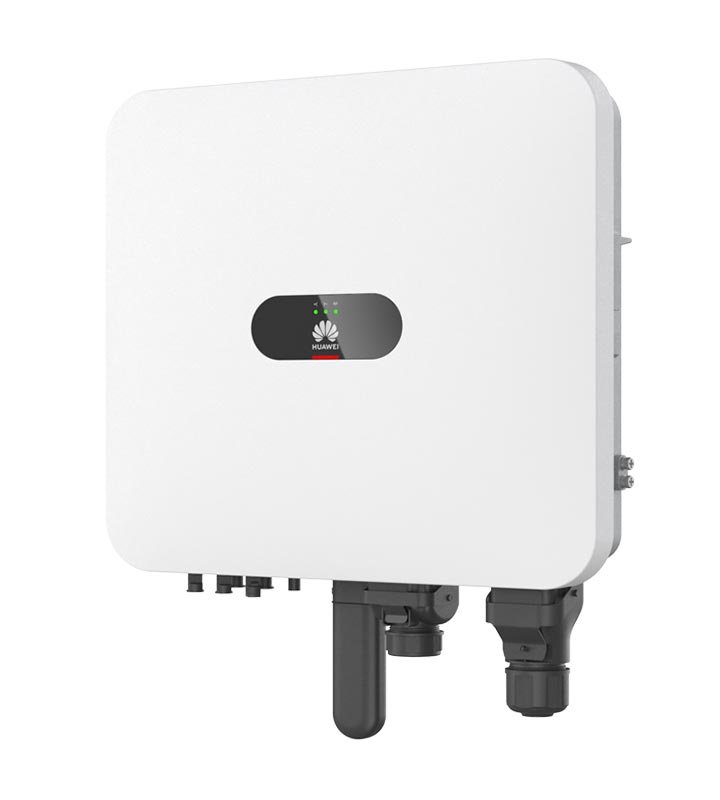

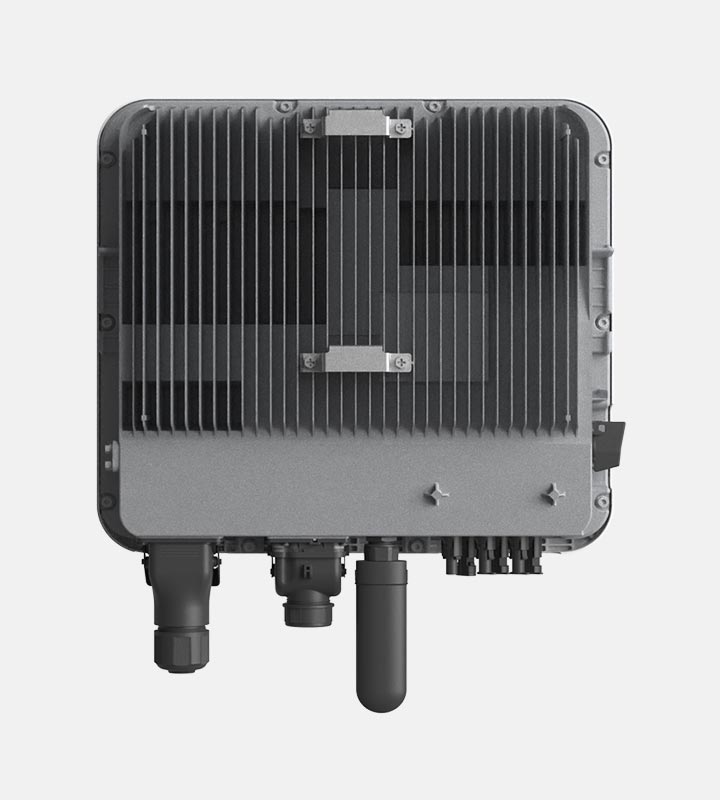

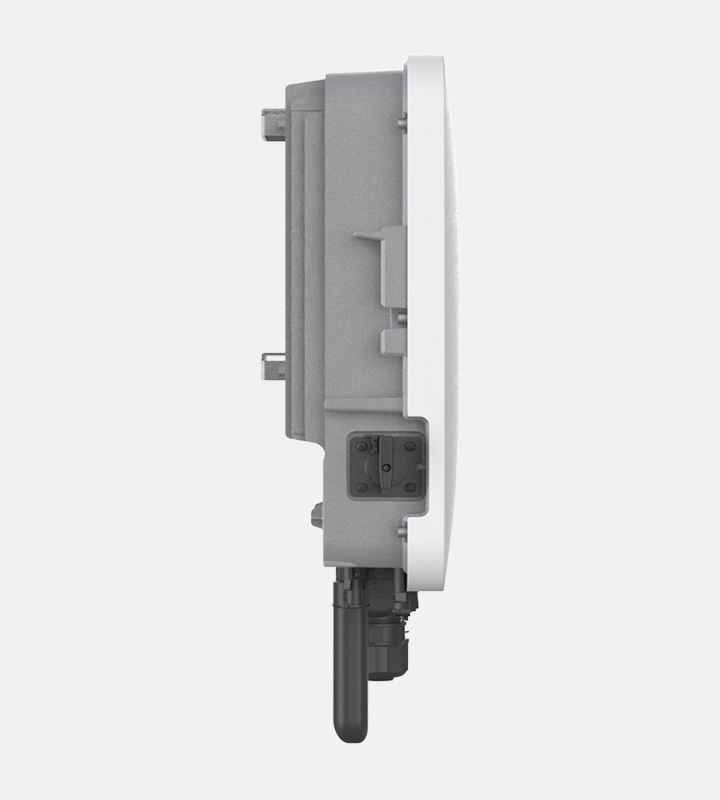

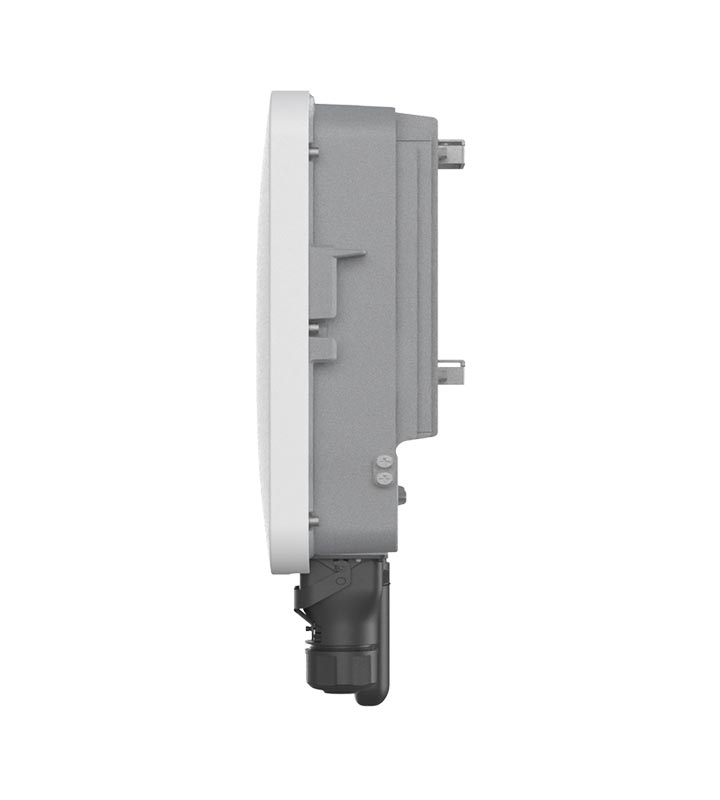

Hybrid inverter HUAWEI 12kW – SUN2000 MAP0, Asymmetric

HUAWEI 12kW Hybrid Inverter – SUN2000 MAP0 is a three-phase inverter with asymmetric output power, designed for optimal energy management in households and small commercial facilities. With a rated power of 12 kW and a maximum PV input power of 22,000 Wp, this inverter provides high efficiency and reliability.

The inverter has two independent MPPT trackers, which allow greater flexibility in the design of photovoltaic systems. The maximum efficiency reaches 98.6%, which guarantees minimal losses in energy conversion. It is compatible with lithium-ion batteries from the LUNA2000 series, which allows efficient storage of excess energy for later use.

Advantages of HUAWEI 12kW hybrid inverter – SUN2000 MAP0

One of the main advantages of this inverter is the asymmetric three-phase output power, which allows dynamic and independent regulation of the power of each phase according to the current load. This ensures more efficient use of the generated energy and reduces dependence on the electrical grid.

Additional features and safety

The inverter is equipped with AI-based arc fault protection, which increases system safety. Also, the IP66 protection rating ensures resistance to adverse weather conditions, making it suitable for outdoor installation. Communication options include RS485, WLAN and Ethernet, which facilitates real-time system monitoring and management.

High efficiency up to 98.4%

Battery Ready – Compatible with LUNA2000 S0 and S1

3-phase asymmetric load – up to 100% asymmetry

Integrated WLAN

AFCI and connector temperature monitoring

Off Grid mode via SmartGuard-63A-T0

Compatible with EMMA, the intelligent energy management system

Your benefits

• High efficiency up to 98.6 %
• Battery ready, plug and play
• 3-phase asymmetrical load
• Integrated WLAN
• AFCI and plug temperature detection
• 10 Years warranty.

Huawei provides advanced photovoltaic technology manufactured for direct use, especially in the small scale of residential, commercial and local power plants. Enables ongoing optimization from construction through operation to maintenance. The integration of digital information and Internet technology is a guarantee for optimizing initial investments, reducing operation and maintenance costs, increasing energy efficiency and a more favorable return on investment.
Huawei’s flagship product in the field of advanced residential and commercial photovoltaic technology is FusionSolar. It consists of Huawei photovoltaic converters, optimization tools, protection devices, current sensors and external communication modules. To monitor and manage the operation of the photovoltaic plant, the FusionSolar applications and the intelligent FusionSolar control system are available to the operators. The SUN2000APP application and Web UI internet software help to handle the installation and commissioning of the solar inverters and other Huawei technologies.
