Votronic MPPT Duo Dig solar controller designed specifically for campers, caravans and boats!

Power

Clear

SKU: N/A Categories: MPPT, Controllers Tags: no display, solar controller, MPPT, 10А, 15А, 21А, 26А, Votronic

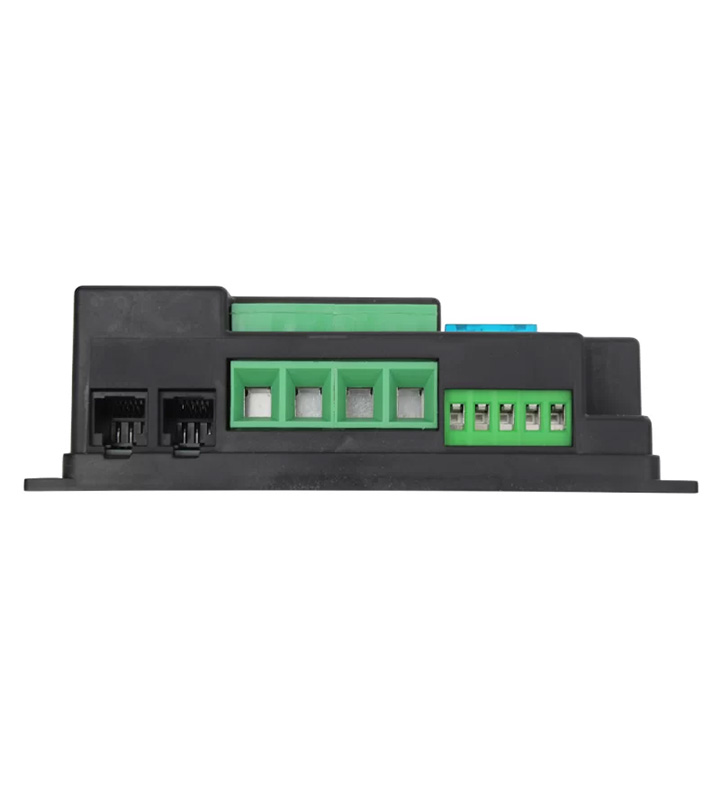

Solar controller Votronic MPPT Duo Dig

The Votronic MPPT Duo Dig controller is a high-performance device designed for optimal control of solar systems in campers, caravans and boats. Using MPPT technology, it increases the charging current by 10-30% compared to conventional controllers, ensuring faster and more efficient battery charging.

This controller is compatible with a variety of battery types, including lead-acid, gel, AGM and LiFePO4, making it a versatile choice for a variety of applications. With its compact and lightweight design, the Votronic MPPT Duo Dig is easy to install and integrate into existing systems.

Advantages of the Votronic MPPT Duo Dig solar controller

One of the main advantages of this controller is the ability to charge two batteries simultaneously. The main battery receives the full charging current, while the second battery is supported with a current of up to 1 A, which is ideal for maintaining the vehicle’s starter battery.

Additional features and protections

The Votronic MPPT Duo Dig features multiple protections, including overload, overheating and reverse polarity protection, ensuring safe and reliable operation. The device is equipped with LED indicators for easy monitoring of charging status and system operation.

MPPT series

VOTRONIC solar controllers with MPP technology are the elite class of solar charge controllers. The microprocessor uses the maximum power point (MPP) of the solar module and determines the maximum yield of the solar system several times per second. The excess voltage is transformed into a higher charging current for the battery. This excess charging current ensures shorter charging times and the best possible energy yield from the solar system. High-quality components ensure that losses are reduced to a minimum.

Unlike conventional controllers, the charging current of the VOTRONIC MPP is increased by approximately 10 to 30%. This advantage has an impact especially in cooler times of the year, in cooler holiday areas or with higher voltage solar modules. Higher voltage PV modules combined with the MPPT controller generate maximum efficiency from the smallest area. The device is adapted to a VOTRONIC modular system and can simply be connected to the solar controller thanks to the plug-and-play design.

Key features

Small, light and compact
High operational safety thanks to the microprocessor
Adjustable battery charging programs: lead-acid, GEL and AGM, LiFePO4
Temperature compensation by sensor 825
Charging or maintaining the car’s starter battery
Automatic refrigerator control AES
Continuous control, instant recharge
5 LED lamps for indication
Suitable for all conventional photovoltaic panels
Option: Measuring device LCD-SolarComputer-S

Warranty period: 5 years

Weight	N/A
Power	165W/10A, 250W/15A, 350W/21A, 430W/26A
manufacturer	Voltronic Power

Specifications

Votronic SR controller

Nominal voltage (DC) in [V] - 12

Maximum power of the module [Wp]- 165

Maximum current from the module [A] - 10.0

Maximum voltage from the module [V] - 50

Maximum charging current battery I / II [A] - 12.0/1.0

Charging characteristic - IU1oU2

Battery type - Acid/Lead-Acid, Gel, AGM, LiFePO4

Consumption in StandBy mode in [A] - 0.004

Overcharge protection - Yes

Reverse current protection - Yes

Number of charging outlets - 2

Overload protection - Yes

Overheating protection - Yes

Short circuit protection - Yes

Temperature sensor option - Yes

Cable compensation - Yes

LCD Solar Computer compatibility - Yes

Temperature limits [°C] - -20 up to 45

Dimensions (WxDxH) in [mm]- 131 x 40 x 77

Weight in [g] - 225

Nominal voltage (DC) in [V] - 12

Maximum power of the module [Wp]- 250

Maximum current from the module [A] - 15.0

Maximum voltage from the module [V] - 50

Maximum charging current battery I / II [A]- 18.0/1.0

Charging characteristic - IU1oU2

Battery type - Acid/Lead-Acid, Gel, AGM, LiFePO4

Consumption in StandBy mode in [A] - 0.004

Overcharge protection - Yes

Reverse current protection - Yes

Number of charging outlets - 2

Overload protection - Yes

Overheating protection - Yes

Short circuit protection - Yes

Temperature sensor option - Yes

Cable compensation - Yes

LCD Solar Computer compatibility - Yes

Temperature limits [°C] - -20 up to 45

Dimensions (WxDxH) in [mm]- 131 x 40 x 77

Weight in [g] - 235

Nominal voltage (DC) in [V] - 12

Maximum power of the module [Wp]- 350

Maximum current from the module [A] - 21.0

Maximum voltage from the module [V] - 50

Maximum charging current battery I / II [A] - 25.5/1.0

Charging characteristic - IU1oU2

Battery type - Acid/Lead-Acid, Gel, AGM, LiFePO4

Consumption in StandBy mode in [A] - 0.004

Overcharge protection - Yes

Reverse current protection - Yes

Number of charging outlets - 2

Overload protection - Yes

Overheating protection - Yes

Short circuit protection - Yes

Temperature sensor option - Yes

Cable compensation - Yes

LCD Solar Computer compatibility - Yes

Temperature limits [°C] - -20 up to 45

Dimensions (WxDxH) in [mm]- 131 x 40 x 77

Weight in [g] - 285

Nominal voltage (DC) in [V] - 12

Maximum power of the module [Wp]- 430

Maximum current from the module [A] - 26.0

Maximum voltage from the module [V] - 50

Maximum charging current battery I / II [A] - 34.5/1.0

Charging characteristic - IU1oU2

Battery type - Acid/Lead-Acid, Gel, AGM, LiFePO4

Consumption in StandBy mode in [A] - 0.004

Overcharge protection - Yes

Reverse current protection - Yes

Number of charging outlets - 2

Overload protection - Yes

Overheating protection - Yes

Short circuit protection - Yes

Temperature sensor option - Yes

Cable compensation - Yes

LCD Solar Computer compatibility - Yes

Temperature limits [°C] - -20 up to 45

Dimensions (WxDxH) in [mm]- 131 x 40 x 77

Weight in [g] - 285

Documentation

Technical specifications – EN
Installation and user manual – EN
Technical specifications – BG
Installation and user manual – BG
