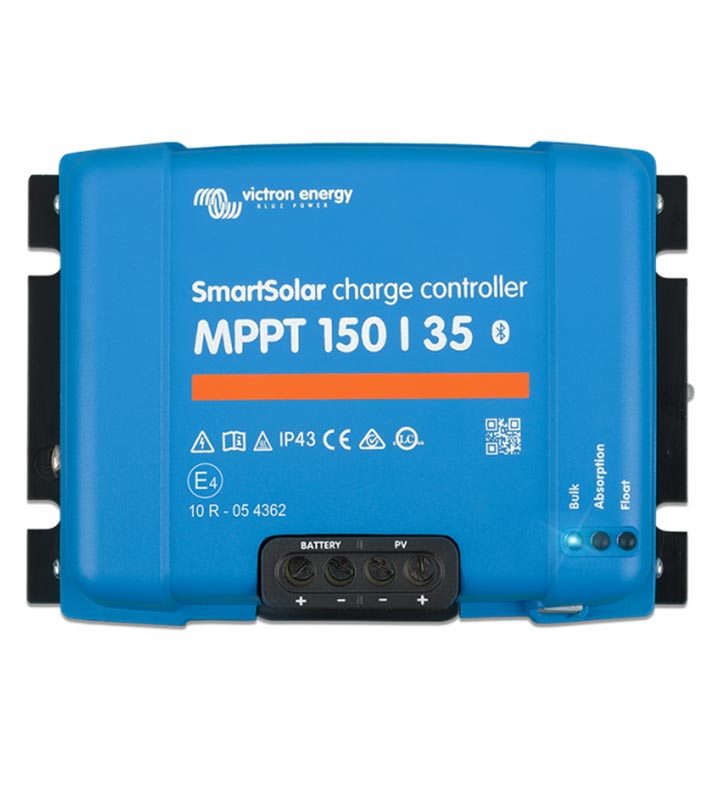

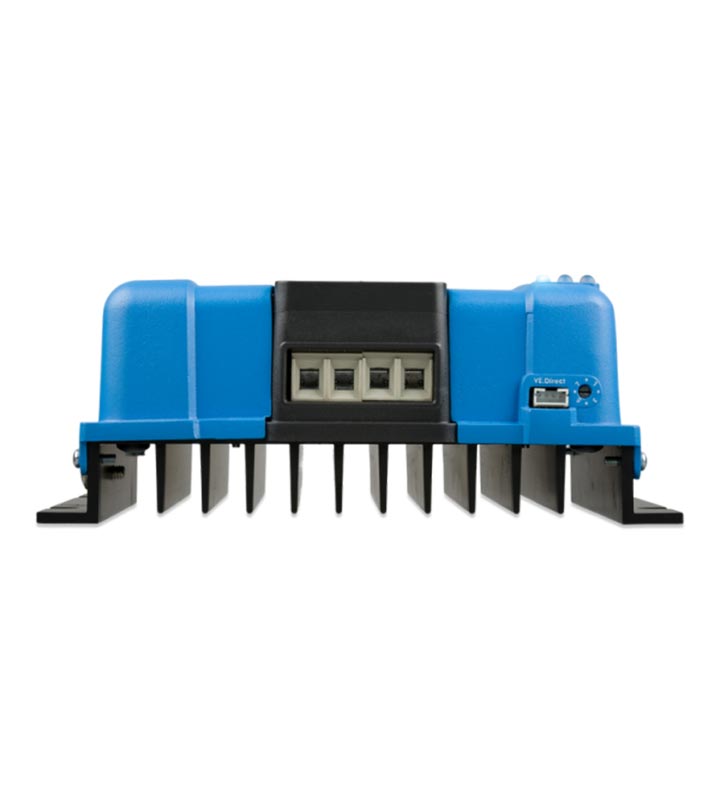

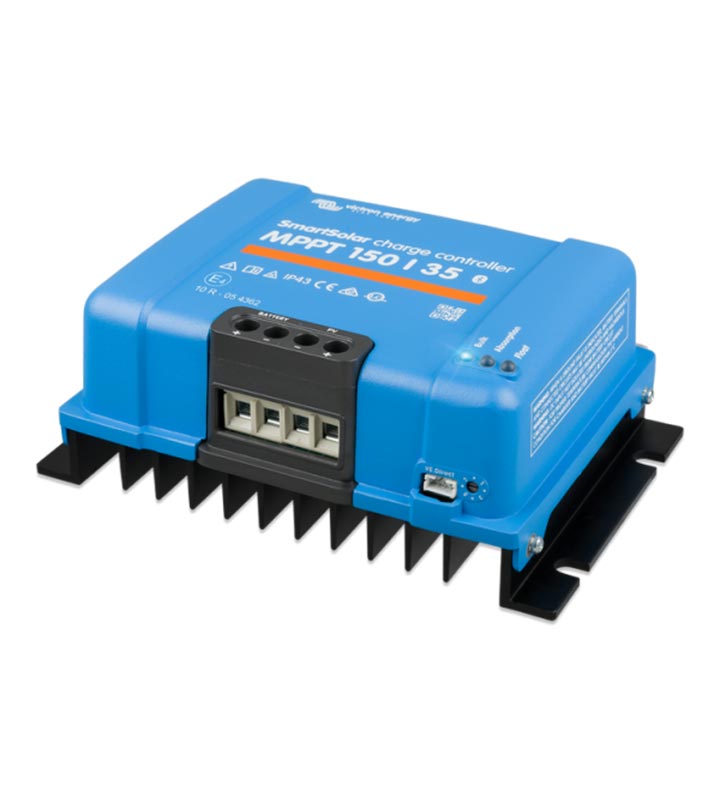

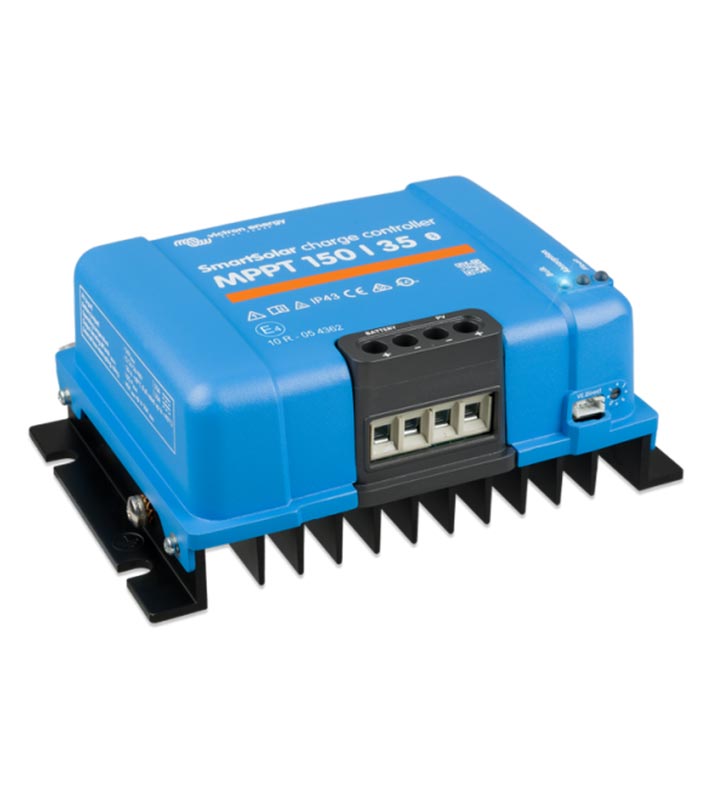

Controller Victron SmartSolar MPPT 150/35A
236,00 € VAT included(≈ 461.58 лева)
Buy with
Solar controller Victron MPPT SmartSolar 150/35A
The Victron SmartSolar MPPT 150/35A controller is a highly efficient solution for charging control in photovoltaic systems. It uses advanced MPPT technology, which increases the energy yield from solar panels. In variable sunlight, the controller optimizes the operating point of the panels. This allows for more efficient charging of batteries and better use of the available solar energy.
The model works with 12V, 24V and 48V battery systems, with the selection being made automatically. The maximum charging current reaches 35A, which makes it suitable for small and medium-sized solar installations. The controller supports a maximum input voltage of 150V from the photovoltaic array. This allows the use of longer strings of panels and more flexible system design.
Intelligent MPPT technology for higher yield
The controller uses ultra-fast Maximum Power Point Tracking control. This technology increases energy yield by up to 30% compared to PWM controllers. In cloudy weather or variable light, the system reacts very quickly. This ensures optimal use of solar energy throughout the day.
The MPPT algorithm recognizes different maximum power points in partial shading. This way, the controller always selects the most efficient operating point. This improves the performance of the solar system.
Built-in Bluetooth and easy monitoring
Victron SmartSolar MPPT 150/35A has a built-in Bluetooth module. Through it, setup and monitoring are done directly from a mobile device. The user can use the VictronConnect application to monitor the system parameters.
The controller allows software updates and settings changes without additional devices. It also has a VE.Direct port for connecting to other monitoring systems. This makes integration into larger solar installations easy and convenient.
Reliable protection and high efficiency
The device offers a conversion efficiency of over 98%. It operates without a fan and uses passive cooling. This reduces noise and increases reliability during continuous operation. The controller maintains its full rated current at temperatures up to 40°C.
The model has multiple electronic protections. These include protection against overheating, reverse polarity and short circuit of the panels. There is also protection against reverse current to the photovoltaic array. Thanks to these functions, the system operates safely and stably under various conditions.
Warranty period: 5 years
| Weight | 1,3 kg |
|---|---|
| Option | without Bluetooth, with Bluetooth |
| manufacturer |
Specifications
Battery Voltage – 12 / 24 / 48 V Automatic selection (software tool required for 36 V selection)
Nominal charging current – 35 A
Nominal photovoltaic power – 12 V: 500 W / 24 V: 1000 W / 36 V: 1500 W / 48 V: 2000 W
Max. Short circuit current of the photovoltaic panel – 40 A
Maximum open circuit voltage of the photovoltaic panel – 150 V absolute maximum (145 V starting and operating maximum)
Maximum efficiency – 98%
Own consumption – 12 V: 20 mA / 24 V: 15 mA / 48 V: 10 mA
Absorption charging voltage – Default: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable)
Floating charge voltage – Default: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable)
Charging algorithm – Multi-stage adaptive (eight pre-programmed algorithms)
Temperature compensation – -16 mV / -32 mV / -64 mV / °C
Protection – reverse polarity of the photovoltaic panel / output short circuit / overheating
Operating temperature – -30 to +60 °C (full rated power up to 40 °C)
Humidity – 95%, non-condensing
Data communication port – VE.Direct
Color – Blue (RAL 5012)
Power terminals – 16 mm² / AWG6
Protection category – IP43 (electronic components), IP22 (connection area)
Weight – 1.25 kg
Dimensions (h x w x d) – 130 x 186 x 70 mm
Safety standards – EN/IEC 62109-1 / UL 1741 / CSA C22.2
Stored trend data – Battery voltage, current and temperature, load output current, photovoltaic voltage and photovoltaic current
Number of days trend data is stored – 46
