Solar panel Jinko 435W Tiger Neo N-type – 54HL4-V, monocrystalline

Solar panel Jinko 435W Tiger Neo N-type – 54HL4-V, monocrystalline

Solar panel Jinko 435W Tiger Neo N-type – 54HL4-V is a highly efficient monocrystalline module from the Tiger Neo series. The panel uses N-type TOPCon technology, which provides lower degradation over time. The design is optimized for stable operation in various climatic conditions. The module is certified according to IEC 61215 and IEC 61730 standards.

This solar panel offers excellent performance in low light and high temperatures. SMBB technology improves current collection and increases reliability. The panel is resistant to PID degradation through optimized manufacturing control. It is suitable for rooftop and ground-mounted photovoltaic systems.

N-Type technology

N-type modules with Tunnel Oxide Passivation Contacts (TOPcon) technology offer lower LID/LeTID degradation and better low-light performance.

HOT 3.0 technology

N-type modules with JinkoSolar’s HOT 3.0 technology offer better reliability and efficiency.

Resistance to extreme conditions

High resistance to salt spray and ammonia.

Improved mechanical load

Certified to withstand:
Maximum static test load front 6000 Pa
Maximum static test load rear 4000 Pa

SMBB technology

Better light capture and energy harvesting to improve module power and reliability.

Anti-PID

Minimizes the likelihood of degradation caused by PID phenomena by optimizing cell manufacturing technology and materials control.

High efficiency and optimal yield

The model provides a nominal power of 435W under standard test conditions. The module efficiency exceeds 21 percent at STC. The temperature coefficient of power is -0.29 percent per degree. This ensures stable output at high summer temperatures.

Durability and mechanical resistance

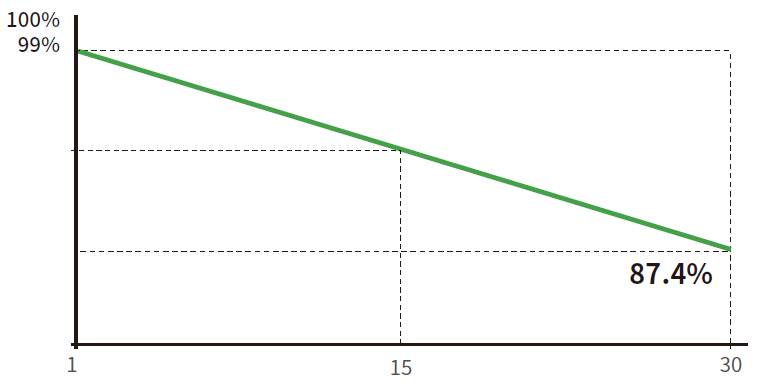

The solar panel is designed for operation for over 30 years. Initial degradation is minimal in the first year. The module withstands loads of up to 6000 Pa at the front and 4000 Pa at the back. It is suitable for areas with snow, wind and severe weather conditions.

Universal application and security

The panel is suitable for residential, commercial and industrial photovoltaic systems. Operating voltage up to 1500 VDC allows flexible system design. IP68 junction box provides long-term protection. The module is resistant to salt fog and ammonia environments.

Jinko Solar is the first company to create “vertically integrated” production capacity. It has a total of 14 global manufacturing bases in China, USA, Malaysia and Vietnam. As of the fourth quarter of 2024, the company’s effective production capacity of monocrystalline silicon wafers, cells and modules reached 2022GW, 65GW and 55GW, respectively. Jinko Solar has more than 70 R&D and technical staff and has won many honors such as “National Enterprise Technology Center”, “National Technological Innovation Demonstration Enterprise”, “Champion of manufacturing” and has formulated many international and domestic industry standards such as IEC. Jinko Solar is constantly expanding the diverse application scenarios of photovoltaic technology, including building-integrated systems, photovoltaic hydrogen production, energy storage and other areas.
