Monocrystalline solar panel 60W

Monocrystalline photovoltaic/solar panel 60W

Highly efficient monocrystalline photovoltaic panel with a power of 60W, produced according to the requirements and quality criteria of “ES-3”!

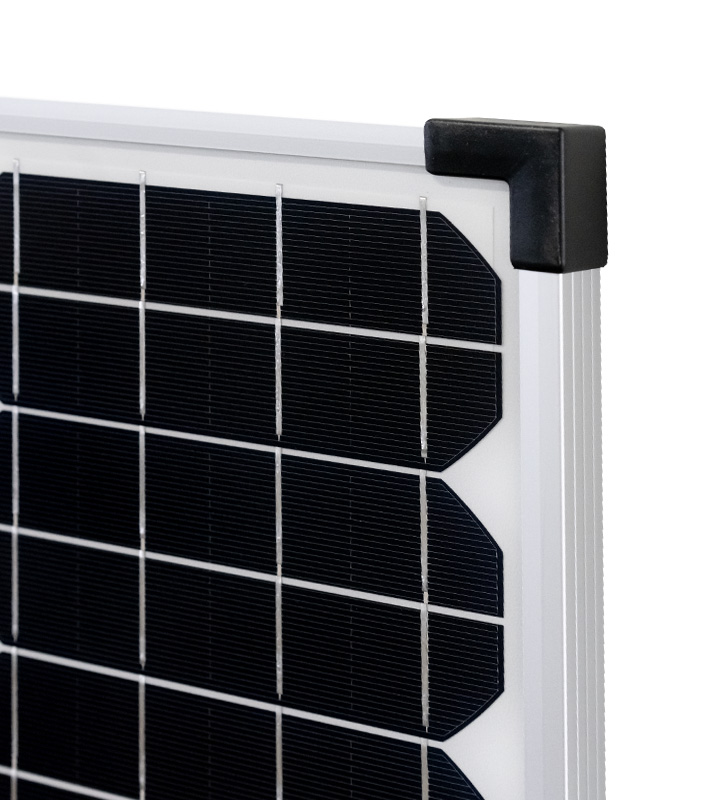

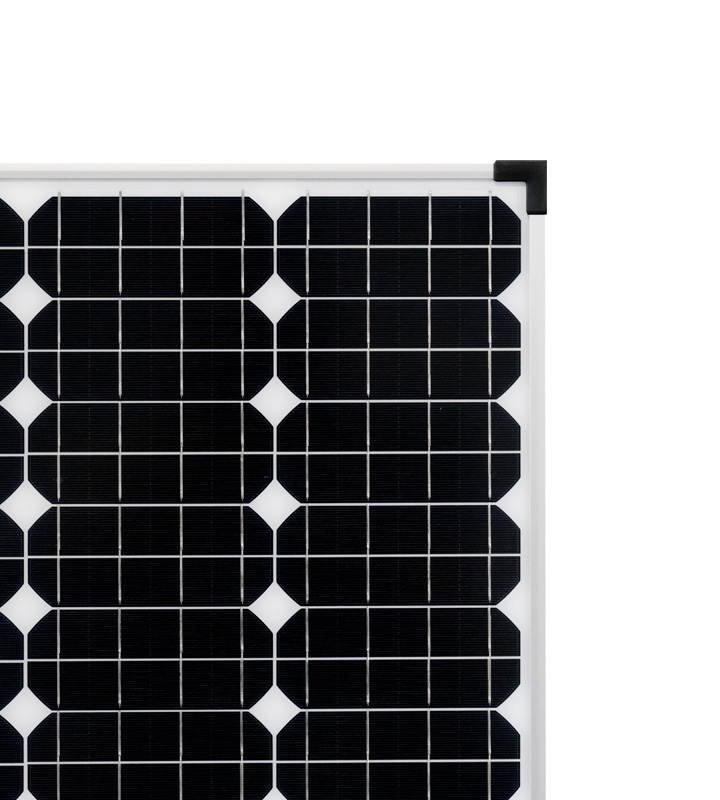

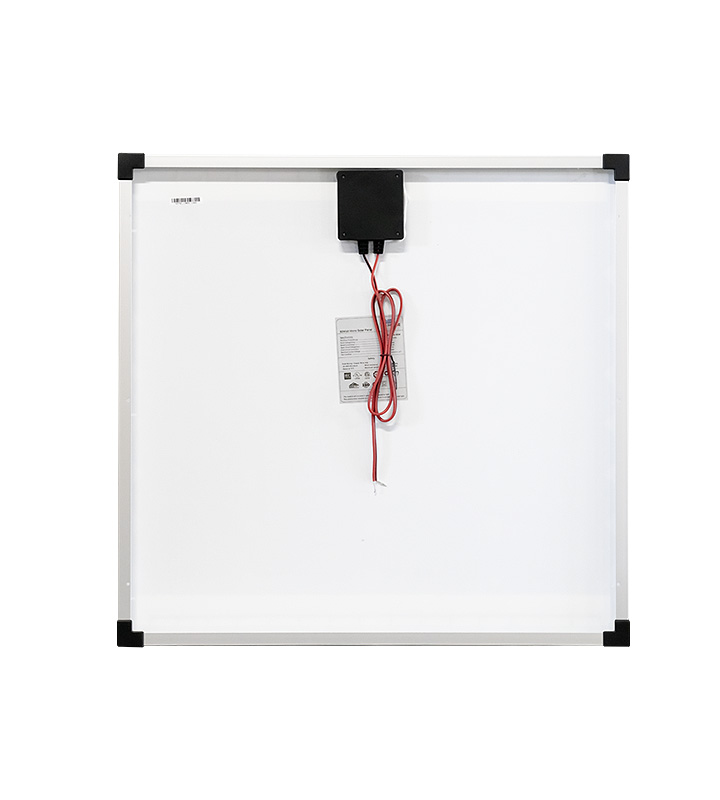

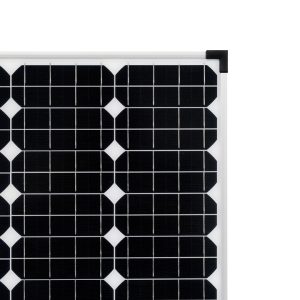

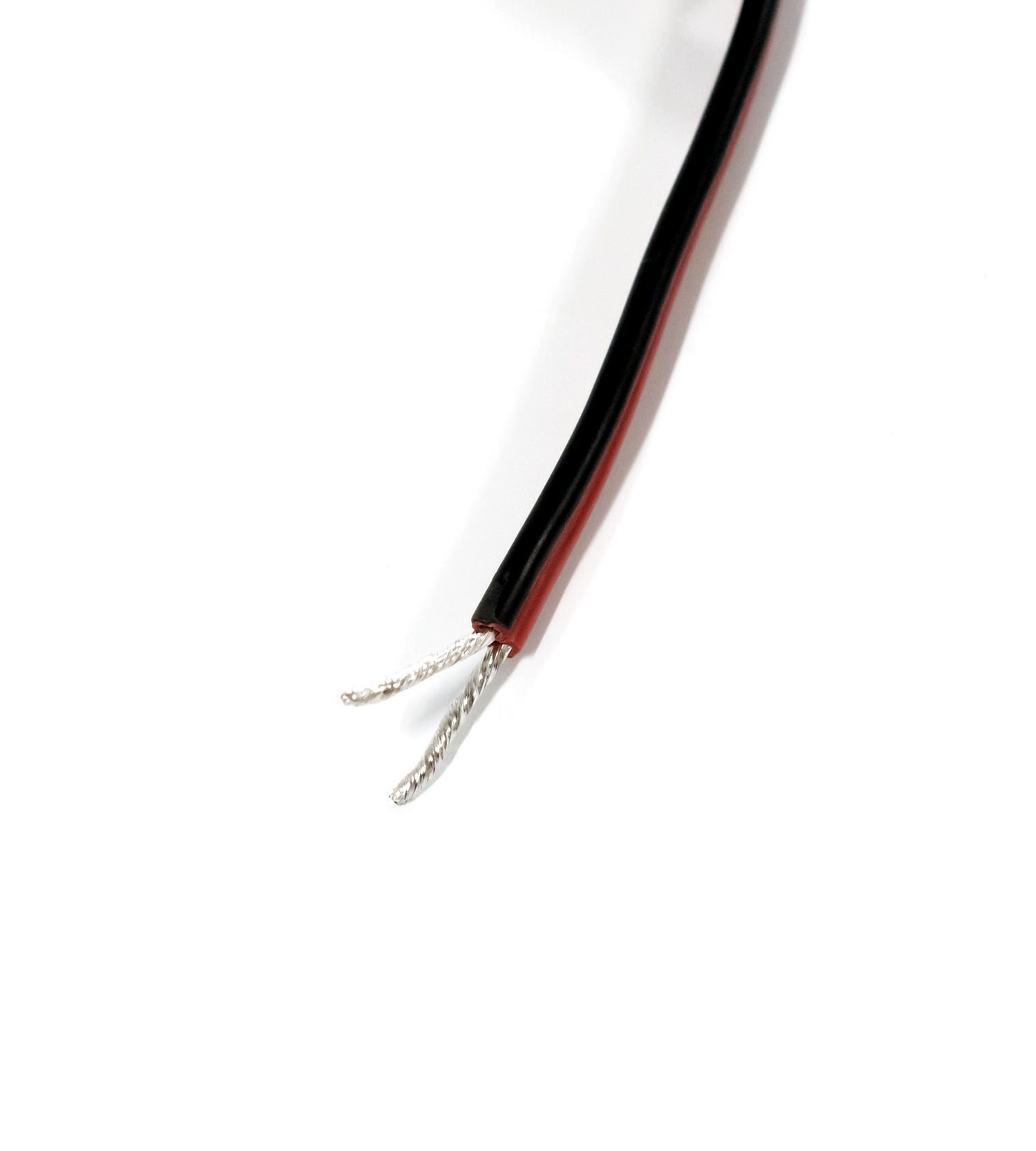

The 60W monocrystalline photovoltaic panel is a highly efficient solution for converting solar energy into electricity. Composed of 36 monocrystalline cells with 5 BusBars, this panel ensures stable and reliable operation. The anti-reflective tempered glass minimizes glare and increases the efficiency of the panel. The 35 mm thick aluminum frame guarantees strength and resistance to various weather conditions. The panel is equipped with 100 cm cables (black and red) and a box with diodes preventing reverse current.

Measuring 670 x 650 x 25 mm and weighing around 4 kg, this panel is compact and easy to install. It is designed to charge 12V batteries, making it ideal for campers, caravans, boats and places without electricity. The high efficiency of the monocrystalline cells ensures optimal performance even in lower light conditions.

Applications and advantages of monocrystalline solar panel 60W

The 60W monocrystalline photovoltaic panel is suitable for a variety of applications, including lighting, small appliances and chargers in remote areas. Its compactness and lightness allow for easy transportation and installation. The aluminum frame provides corrosion resistance, which extends the service life of the panel. Anti-reflective glass not only improves efficiency, but also protects the cells from mechanical damage.

Technical specifications solar panel 60W

The panel offers a maximum current (Imp) of 2.75A and a maximum voltage (Vmp) of 18.2V. The open circuit voltage (Voc) is 21.5V and the short circuit current (Isc) reaches 2.23A. These characteristics guarantee reliable and efficient charging of 12V batteries. The panel is designed to withstand various climatic conditions, making it suitable for outdoor use all year round.

It comes with MC4 connectors (optional) so it’s easy to add to a string and is protected against moisture. CE certified, fully weatherproof and professionally made with high quality components.
