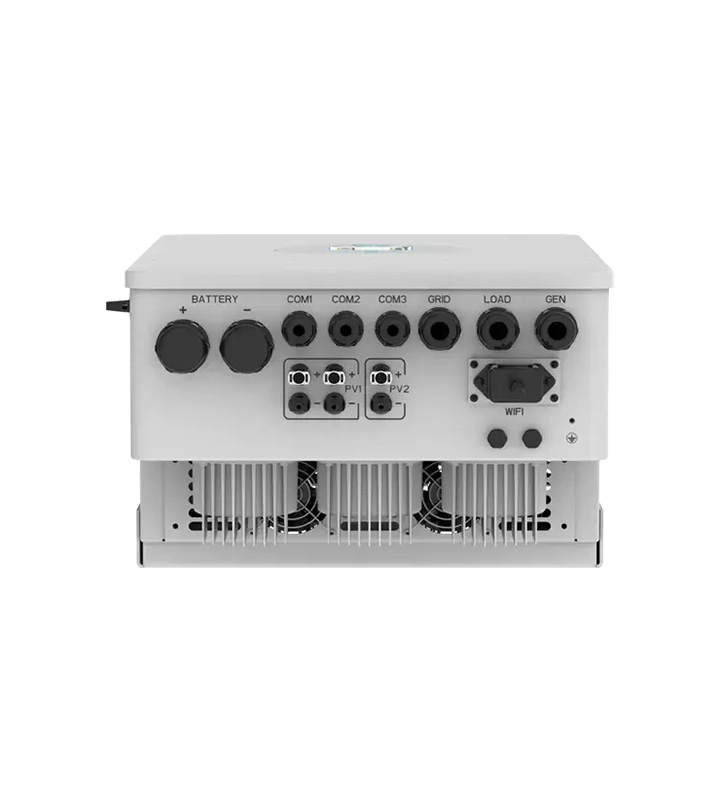

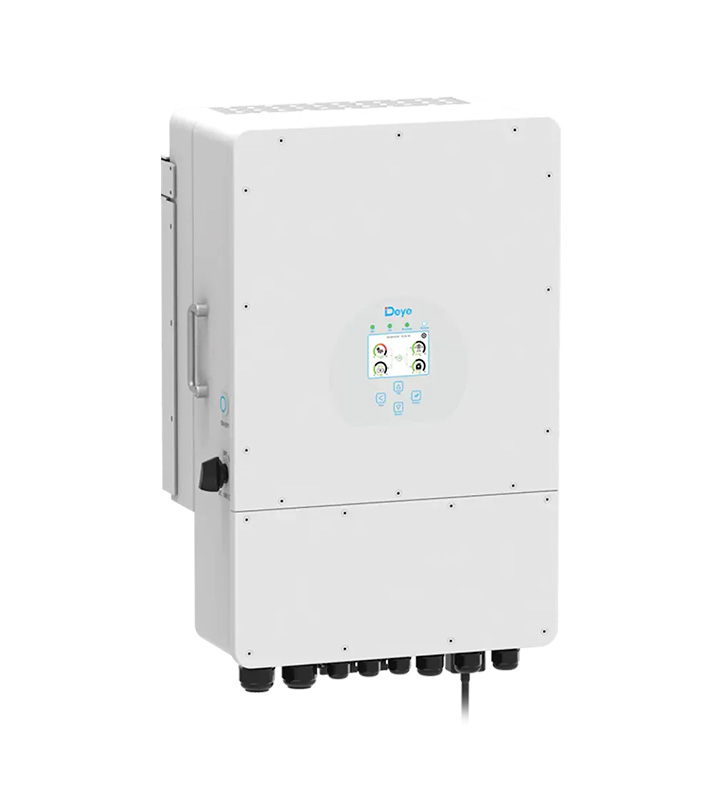

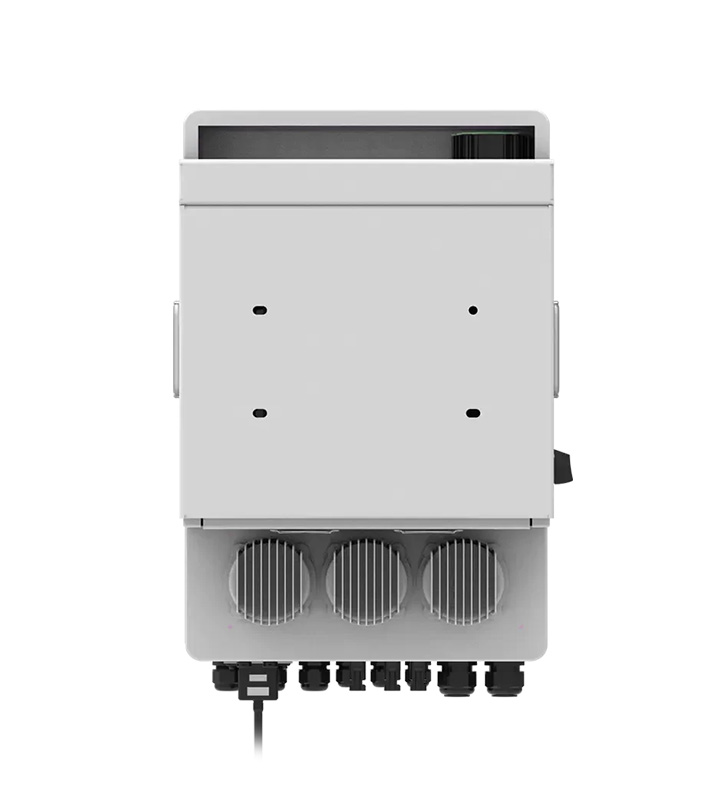

Hybrid inverter Deye 8kW - SUN - 8K - SG04LP3-EU, three-phase

Hybrid inverter Deye 8kW - SUN - 8K - SG04LP3-EU, three-phase - Image 2

Hybrid inverter Deye 8kW - SUN - 8K - SG04LP3-EU, three-phase - Image 3

Hybrid inverter Deye 8kW - SUN - 8K - SG04LP3-EU, three-phase - Image 4

Hybrid inverter Deye 8kW – SUN – 8K – SG04LP3-EU, three-phase

Name: Hybrid inverter Deye 8kW - SUN - 8K - SG04LP3-EU, three-phase
SKU: 77973
Availability: InStock

1930,00 € VAT included(≈ 3,774.75 лева)

Buy with

13 x €177.54 (13 x 347.24 лв.)

Categories: Inverters, Hybrid inverters Tags: Deye, SUN, 8K, 8kW, Inverter, three-phase, hybrid

Main features of Deye 8kW – SUN – 8K – SG04LP3-EU three-phase hybrid inverter

Hybrid inverter Deye 8kW – SUN – 8K – SG04LP3-EU, is a three-phase device designed to efficiently convert solar energy into alternating current and store excess energy in a battery. С номинална мощност от 8 kW и максимална входна мощност от 10,4 kWp, той осигурява надеждно захранване за различни приложения. Диапазонът на MPPT напрежението е от 200 V до 650 V, което позволява гъвкавост при конфигуриране на фотоволтаичната система.

The inverter operates with low voltage batteries (48 V), ensuring system safety and reliability. It features two MPP trackers and a maximum input voltage of 800 V, allowing flexibility in configuring the photovoltaic system.

Flexibility and scalability

Deye SUN 8kW – 8K – SG04LP3-EU allows parallel connection of up to 10 inverters, which provides scalability and flexibility when building larger systems. This is especially useful for expanding existing installations or when designing new, larger photovoltaic systems.

Intelligent management and monitoring

The inverter features an advanced monitoring platform that offers remote emergency shutdown, parameter setting, and software updates, making photovoltaic system management more convenient and efficient.

Low voltage battery (48 V), transformer isolation design
6 battery charge/discharge time periods
Max. battery charge/discharge current 240A
Max. up to 10 devices connected in parallel
Compatible with lead-acid and lithium-ion batteries
DC couple and AC couple to retrofit an existing solar system
Supports energy storage from a diesel generator
Supports three-phase unbalanced output (asynchronous, unevenly loaded phases)
Unique Smart Load application and Grid peak shaving function

DEYE inverters come with an extended warranty (5 years from the manufacturer + 5 years from the distributor in Europe), providing additional confidence in long-term reliability.

Deye Group was established in 2000. The company provides a full range of photovoltaic power generation solutions, including residential and commercial power plant solutions, as well as providing solar energy storage system solutions. The company currently has three production bases in Beilun and Cixi, Ningbo, covering an area of 388 acres and a production area of over 400,000 square meters, and its production value will exceed RMB 13 billion in 2023. Ningbo Deye Energy Storage Technology Co., Ltd., as a subsidiary of Deye, is committed to creating better energy storage products for the world and becoming the world’s leading energy storage system provider.

Weight	34 kg
Dimensions	45 × 70 × 28 cm
Power	8kw, 10kw, 12kw
manufacturer	Deye
Power	8 KW
inverter type	Hybrid Inverters
Тип	Three-phase
Инвертори - Low & High Voltage	Low Voltage
Инвертори - позиция за калкулатора

Specifications

Battery Input Data
Battery Type – Lead Acid or Lithium Ion
Battery voltage range (V) – 40~60V
Max. Charging current (A) – 190A
Max. Discharge current (A) – 190A
Charge curve – 3 stages / leveling
Outside temperature sensor – Optional
Li-ion battery charging strategy – Self-adaption to BMS

PV string input data
Max. DC input power (W) – 10400W
PV input voltage (V) – 550V (160V~800V)
MPPT range (V) – 200V-650V
Starting voltage (V) – 160V
PV input current (A) – 12.5A+12.5A
Number of MPPT trackers – 2
Number of MPPT tracker strings – 1+1

AC output data
Rated AC output power and UPS power (W) – 8000W
Max. AC output power (W) – 8800W
Peak power (off-grid) – 2 times rated power, 10 seconds
AC output rated current (A) – 11.6A
Max. AC current (A) – 12.8A
Max. output current of each phase (A) – 17.4A
Max. Continuous AC pass (A) – 50A
Output frequency and voltage – 50/60Hz; 230/400Vac (three-phase)
Grid type – Three-phase
Current Harmonic Distortion – THD <3% (Linear load <1,5%) Efficiency
Max. Efficiency – 97.60%
Euro efficiency – 97.00%
MPPT efficiency – 99.90%

Safety
MPPT Efficiency – 99.90%
Anti-islanding protection – Integrated
Protection against reverse polarity at the PV string input – Integrated
Isolation Resistor Detection – Integrated
Residual Current Monitoring Unit – Integrated
Output overcurrent protection – Integrated
Output Short protection – Integrated
Output overvoltage protection – Integrated
Surge protection – DC Type II / AC Type II

General data
Operating temperature range (℃) – -25~60℃, >45℃ Reduction
Cooling – Smart cooling
Noise (dB) – <30 dB Communication with BMS – RS485; CAN
Weight (kg) – 45
Size (mm) – 422 W × 658 H × 281 D
