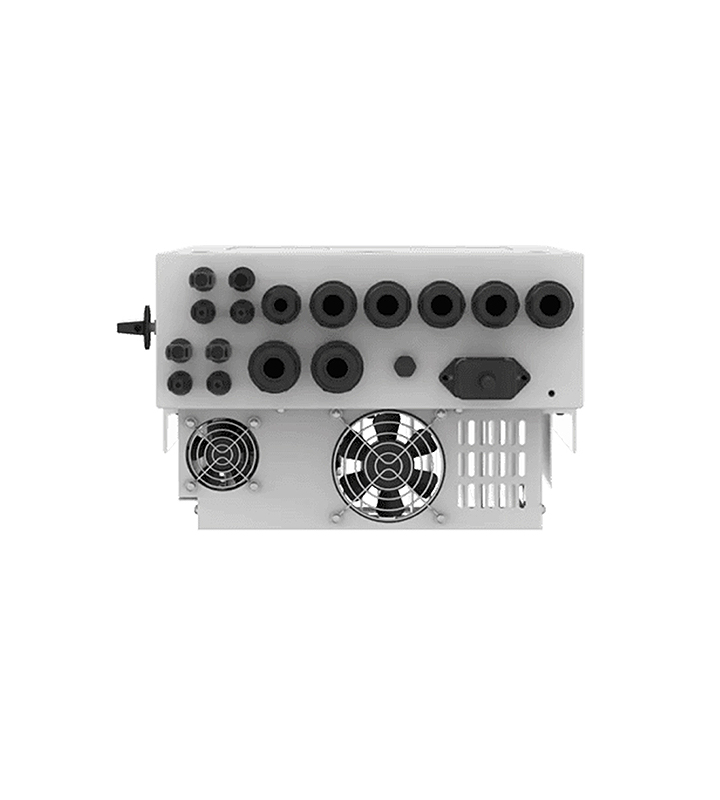

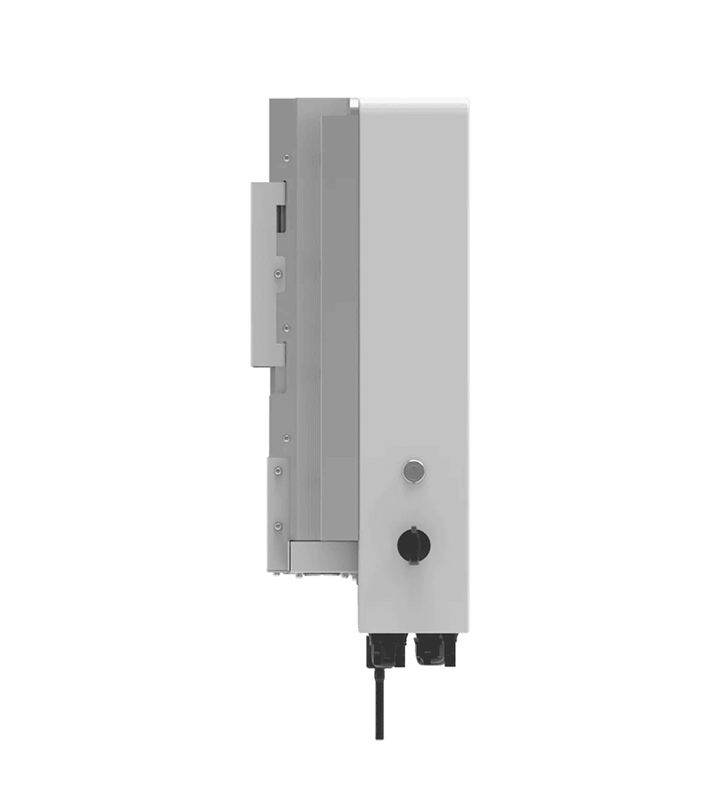

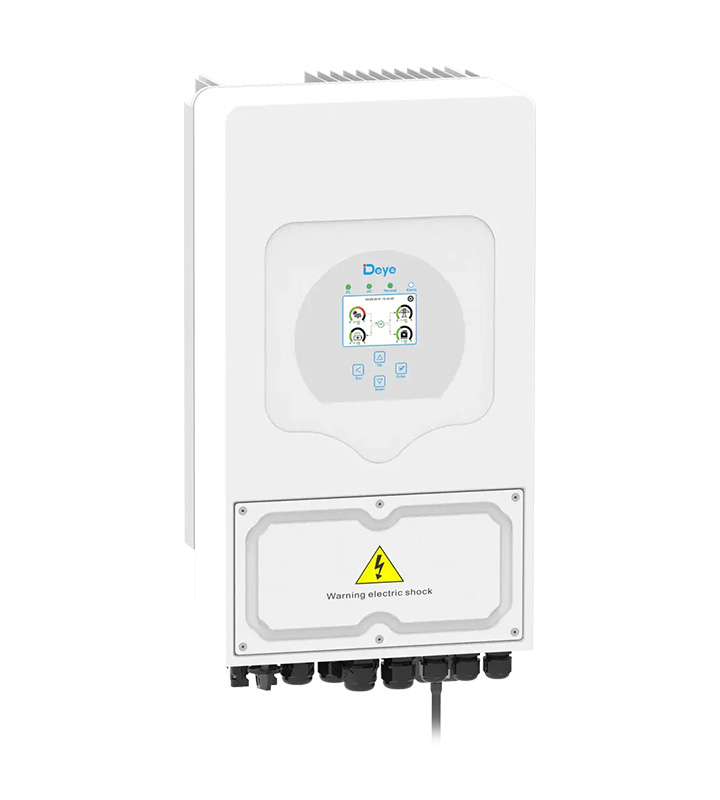

Hybrid inverter Deye 8kW – SUN-8k-SG05LP1-EU, single-phase

Hybrid inverter Deye SUN-8k-SG05LP1-EU is a modern solution for energy management in photovoltaic systems. The model is designed for single-phase installations with a power of up to 8 kW. It allows simultaneous use of solar energy, the electrical grid and batteries. This ensures high energy independence and optimal use of the generated electricity.

The inverter supports lithium-ion and lead-acid batteries with an operating voltage of 40–60 V. The maximum charge and discharge current reaches 190 A. This allows for fast energy storage and use. The device supports a maximum photovoltaic input power of up to 16 kW, which provides great flexibility in system design.

Intelligent energy management

Deye SUN-8k-SG05LP1-EU offers intelligent energy management in your home or business. The inverter has up to six periods for charging and discharging the battery. This allows for optimization of consumption according to electricity tariffs. The system can operate in both grid-connected and autonomous mode. Battery charging from a diesel generator is also supported if necessary.

High efficiency and stable operation

The inverter provides maximum efficiency up to 97.6 percent. MPPT efficiency exceeds 99 percent, which improves the yield of solar panels. The model has two MPPT trackers for better control of different strings of panels. The MPPT operating range allows stable operation under different sunlight conditions. This increases the overall performance of the photovoltaic system.

Reliable protection and easy monitoring

Deye SUN-8k-SG05LP1-EU is designed for reliable and safe operation. The inverter has multiple protections against overvoltage, short circuit and overheating. The housing is IP65 protected and allows outdoor installation. The device uses intelligent air cooling and operates with low noise. Monitoring is carried out via WiFi, LAN, Bluetooth or 4G module.

Deye Group was established in 2000. The company provides a full range of photovoltaic power generation solutions, including residential and commercial power plant solutions, as well as providing solar energy storage system solutions. The company currently has three production bases in Beilun and Cixi, Ningbo, covering an area of 388 acres and a production area of over 400,000 square meters, and its production value will exceed RMB 13 billion in 2023. Ningbo Deye Energy Storage Technology Co., Ltd., as a subsidiary of Deye, is committed to creating better energy storage products for the world and becoming the world’s leading energy storage system provider.
