Victron BMV-700 battery charge/discharge monitor
166,17 € VAT included(≈ 325.00 лева)

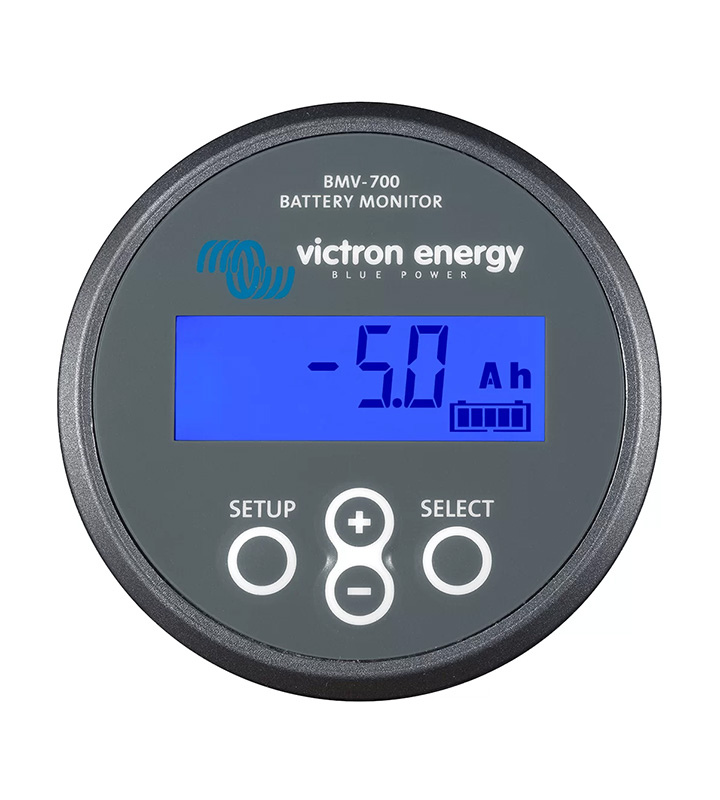

Victron BMV-700 Battery Monitor
The BMV-700 is a high precision battery monitor. The main function of the battery monitor is to calculate the amp hours consumed and the state of charge of the battery. The consumed amperes are calculated by constantly monitoring the current entering or leaving the battery. The remaining capacity of the battery depends on the ampere-hours consumed, discharge current, temperature and age of the battery. Complex software algorithms are required to take all these variables into account.
In addition to basic display options such as voltage, current, and amp hours, the BMV-700 series also displays state of charge, remaining time, and power consumption in watts (W). Use Bluetooth Smart to monitor your batteries on Apple or Android smartphones, tablets, macbooks and other devices.
Easy to install

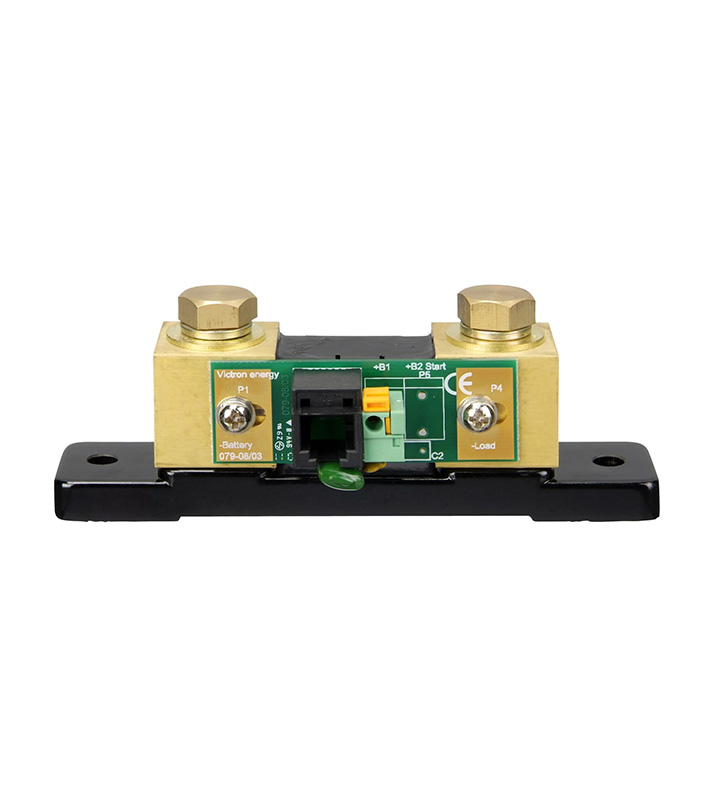

- All electrical connections are quick connect to shunt. The shunt connects to the monitor with a standard RJ12 telephone cable.

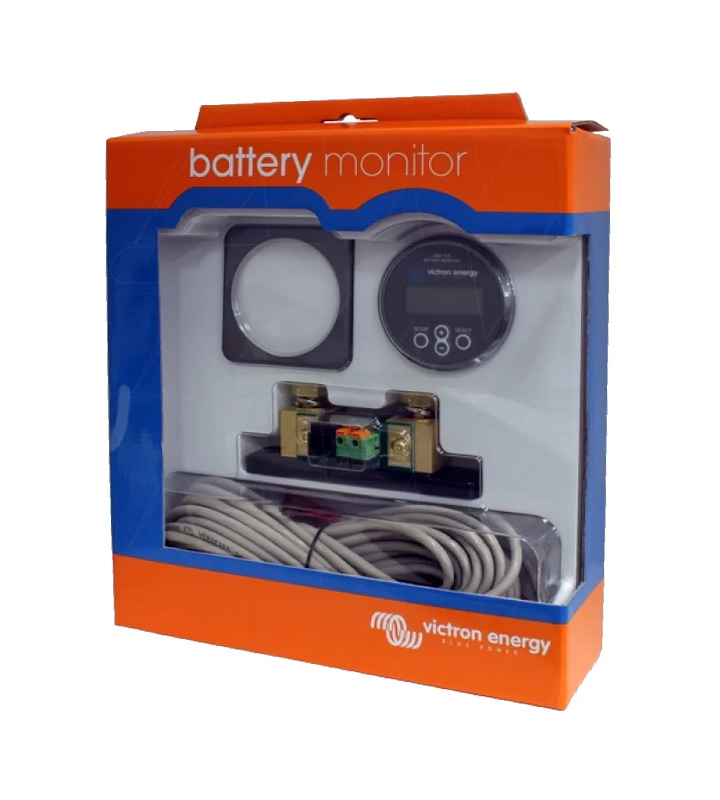

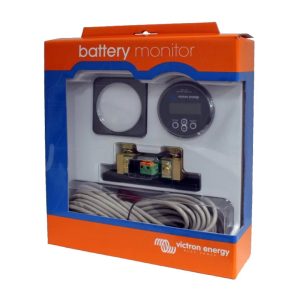

- Included: RJ 12 cable (10m) and battery cable with fuse (2m) – no other components required.
- Easy to program (with your smartphone!)
- A quick installation menu and a detailed setup menu with scrolling texts help the user in navigating through the
different settings. - Another option is to go for the quick and easy solution: download the smartphone app (Bluetooth Smart dongle required)
Standard features
- Battery voltage, current, power, amp hours consumed and state of charge
- Time remaining at current discharge rate
- Programmable visual and audible alarm
- Programmable relay to shut down non-critical loads or start generator when required
- 500 Amp Quick Connect Shunt and Connection Kit
- Shunt selectable up to 10,000 amps
- VE.Direct communication port
- It stores a wide range of historical events
- Wide input voltage range: 6.5 – 95V
- High current measurement resolution: 10mA (0.01A)
- Low current consumption: 2.9Ah per month (4mA) @ 12V and 2.2Ah per month (3mA) @ 24V
| Color | White, Black |
|---|---|
