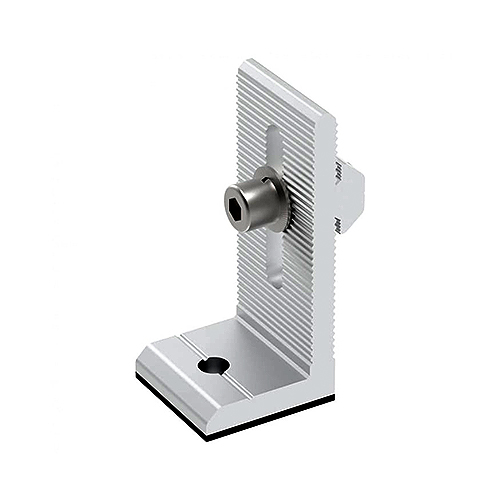

L-shaped plate for sheet metal roof

L-shaped plate for sheet metal roof

L-shaped plate is designed for mounting an aluminum profile for photovoltaic panels on sheet metal roofs, LT-sheet metal, sandwich panels and other roof surfaces.

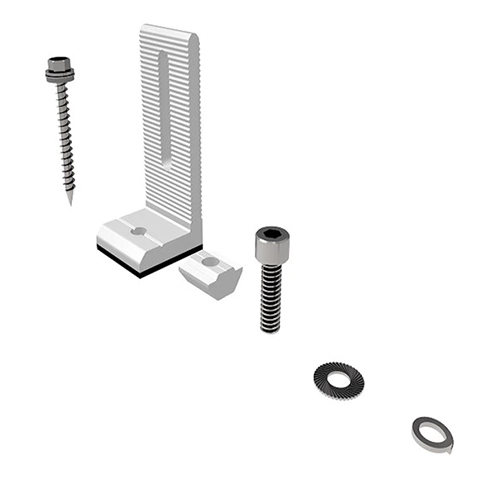

Made of anodized AL6005-T5 aluminum, the kit includes SUS304 stainless fasteners, EPDM backing, and a rubberized pad at the base that helps with insulation and prevents direct contact between the plate and the roof.

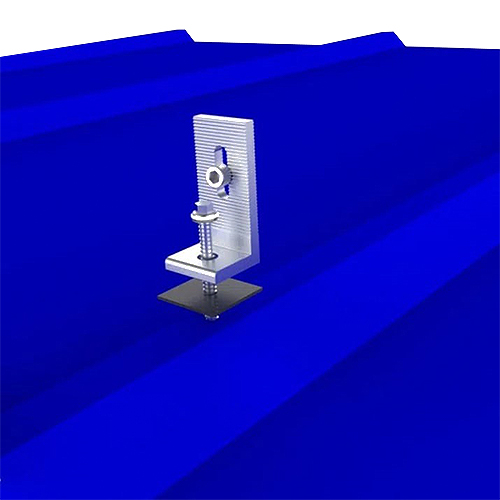

The installation is direct to the roof, providing a stable base for the solar panels, while also ensuring moisture protection and corrosion resistance.

Application and installation

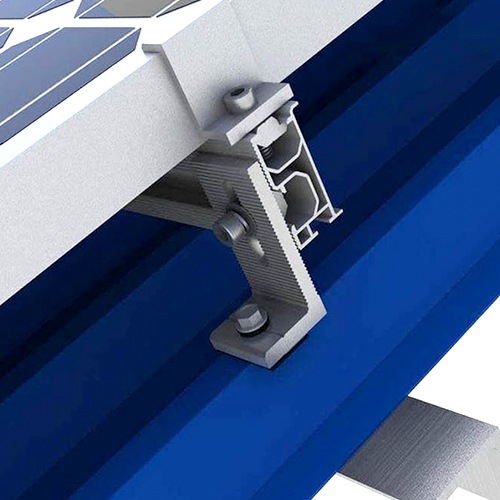

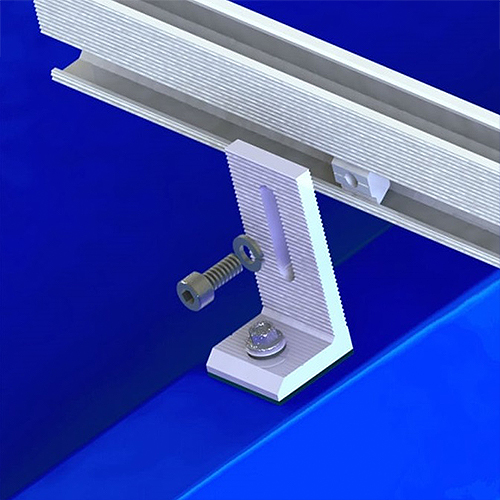

The use of this L-shaped bracket as part of the solar system construction ensures reliable fixation of the panel rails to metal roofs and sandwich panels. The rubber pad provides additional protection against vibrations and thermal deformations. The bracket is made of SUS304 stainless steel, which significantly increases the durability of the system over time. The assembly is direct and quick, which contributes to easier installation and lower labor costs.

Exceptional durability

The anodized aluminum plate AL6005-T5 offers high corrosion resistance and long service life of the structure. The EPDM backing blocks moisture penetration and prevents the formation of galvanic reactions between metals. The combination of materials and design ensures that the system remains stable and safe over the years.
