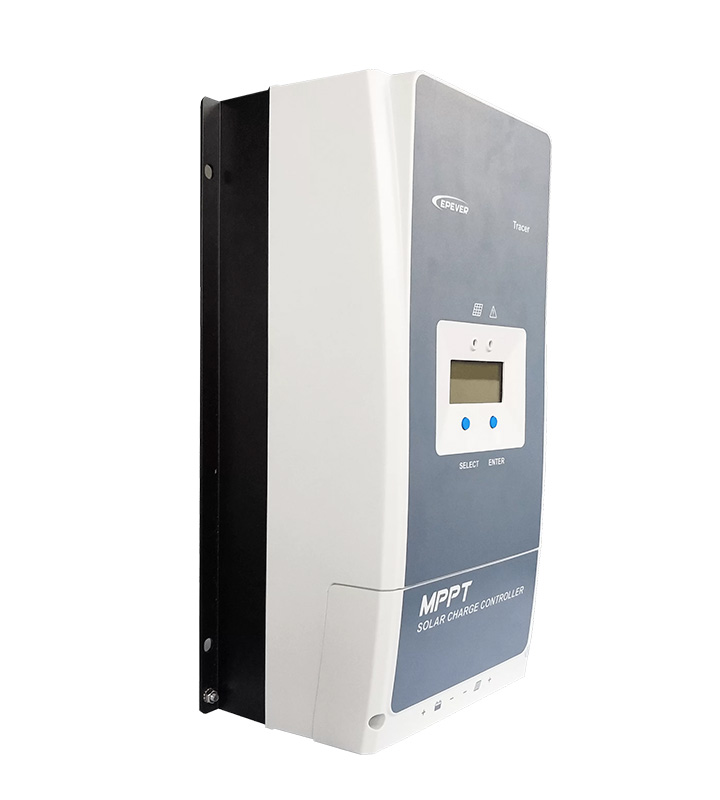

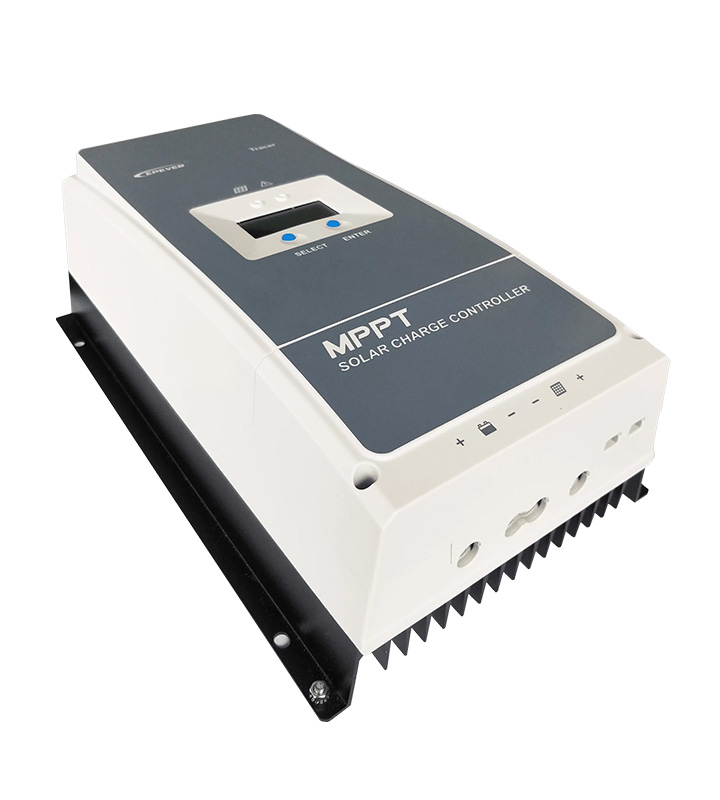

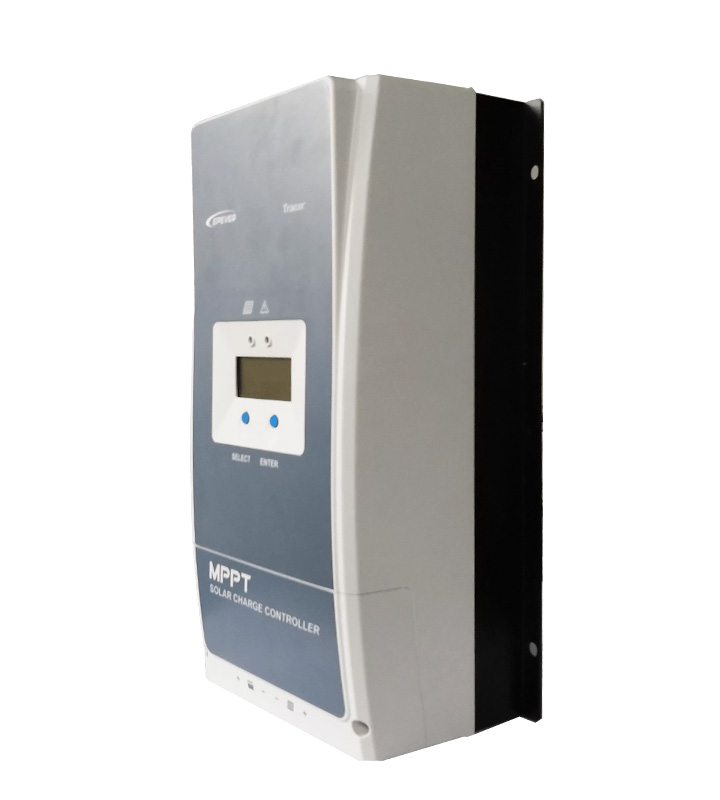

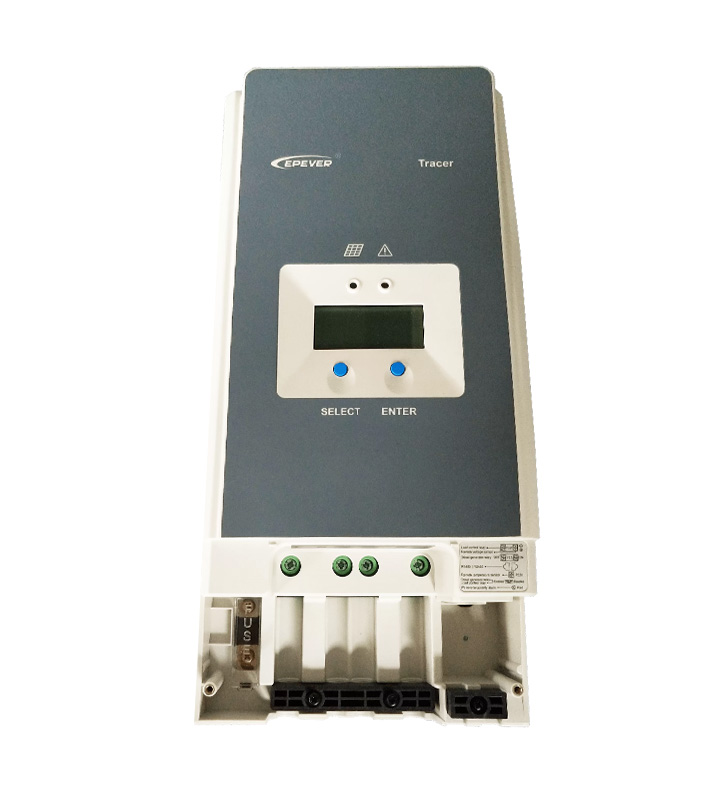

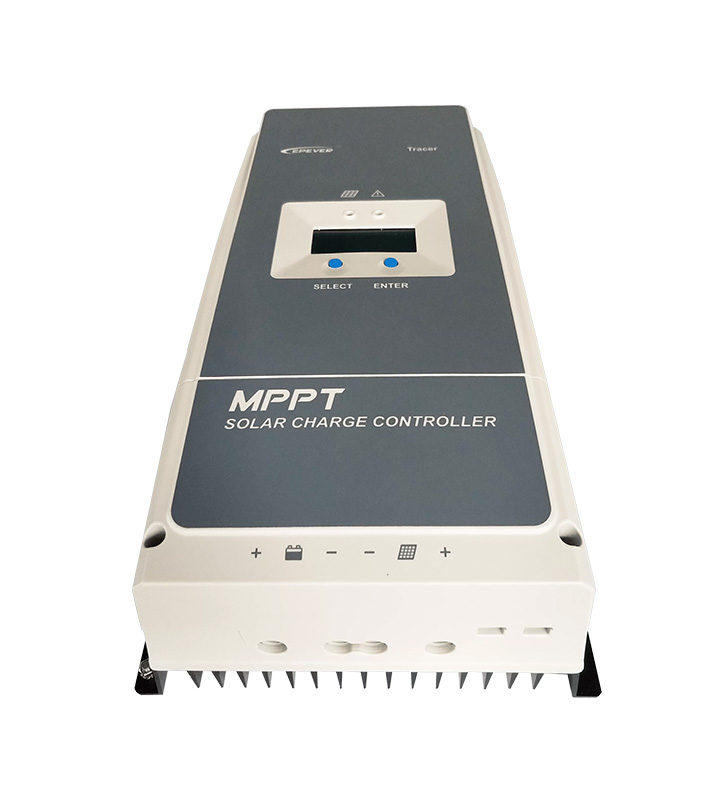

EPEVER Tracer AN 100A MPPT controller

Solar controller EPEVER Tracer AN 100A MPPT

The EPEVER Tracer AN 100A MPPT controller is designed for efficient control of high-power solar systems. It supports a nominal system voltage of 12V, 24V, 36V or 48V, automatically detecting the system voltage. The maximum charging current is 100A, making it suitable for large solar installations. The device uses advanced MPPT technology with tracking efficiency of over 99.5%, ensuring maximum utilization of solar energy.

The controller is compatible with various types of batteries, including lead-acid and lithium-ion, which provides flexibility in choosing energy storage. The maximum input voltage from solar panels is 200V, which allows connecting a larger number of panels in series. The device has two RS-485 communication ports with MODBUS protocol, facilitating monitoring and control of the system via a computer or mobile application.

Advantages of EPEVER Tracer AN 100A MPPT solar controller

One of the main advantages of this controller is its high conversion efficiency, reaching 98%. This ensures minimal losses in the conversion of energy from solar panels to batteries. In addition, the device offers a function for limiting the charging power and current, which protects the batteries from overcharging and extends their life. The design with a common negative ground point facilitates integration into various systems and configurations.

Benefits of using EPEVER Tracer AN MPPT

Using this controller in your solar system leads to more efficient utilization of solar energy and reduced electricity costs. The device is equipped with three relay outputs that can be used to control various loads, generators or other devices, increasing the flexibility of the system. The ability to connect up to six controllers in parallel allows the construction of large-scale solar installations with a total power of up to 30 kW.

Specifications

• Intelligent MPPT technology
• High tracker efficiency – 99.5%
• High overall efficiency – 98%
• Super fast tracker
• Precise detection and tracing
• Multifunctional LCD display with intuitive information
• Programmable battery type – liquid, AGM, GEL and LiFePO4
• 3-stage charge
• Ability to work in parallel with up to 6 devices
• RS485 port
• Fully programmable via PC or external device

Electronic protections

• Deep battery discharge
• Reverse the poles

EpEver products come with a 2-year warranty that covers manufacturing defects and ensures reliability and quality throughout the warranty period.

EPEVER is a well-established global manufacturer of solar controllers, inverters and energy solutions, known for reliability, high efficiency and innovation. Founded in 2007, the company offers products with global certifications (CE, ROHS, ISO9001) and a presence in over 120 countries, making it the preferred choice for solar systems of all sizes.
