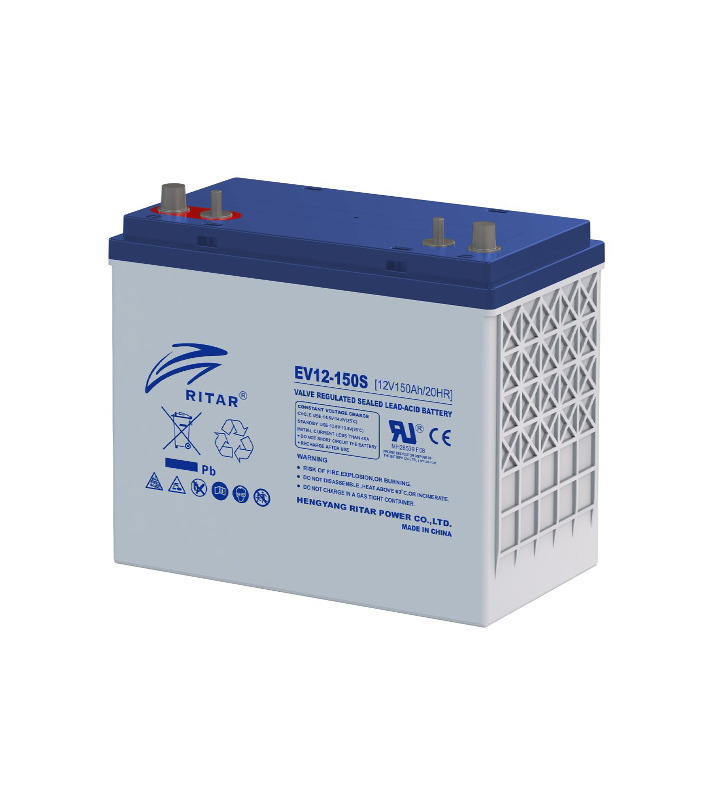

Battery RITAR Electric Vehicle 12V/150Ah

Battery RITAR Electric Vehicle 12V/150Ah

RITAR Electric Vehicle 12V/150Ah (EV12-150S) battery is designed specifically for electric vehicles and applications with frequent deep discharges. It uses VRLA (Valve Regulated Lead Acid) lead-acid technology and offers a capacity of 150Ah at a 20-hour discharge cycle to 1.75V per cell at 25°C. Its stable 12V voltage, combined with low internal resistance (≤4.0 mΩ), makes it an excellent choice for high-stress environments and professional applications.

The battery withstands a maximum discharge current of up to 1500A for 5 seconds, and its normal operating temperature range is from –20°C to +60°C. The housing is made of durable ABS material (UL94-V0 option) and is equipped with F10 terminals type M8. Its weight is about 41 kg. With proper operation and maintenance, the battery provides a long service life, thanks to the specially designed active mass, the strong grid and the thickened plates.

Applications and benefits

RITAR EV12-150S is suitable for electric vehicles, golf carts, floor cleaning machines, lifting equipment, marine and caravan applications, medical equipment and robots. It is characterized by high resistance to cyclic use and guarantees stable operation even under increased loads. The low self-discharge rate – less than 3% per month – makes it reliable even during long-term storage.

Fast charging capabilities and temperature resistance

The battery supports a maximum charging current of up to 45A and is optimized for fast charging with a cyclic voltage of 14.6–14.8V at 25°C. It operates over a wide temperature range – both during charging (0 to 50°C) and during storage (–20 to +60°C). It has temperature compensation for charging, which prevents overcharging or undercharging during sudden changes in climate.

Long service life and durability in cyclic operation

The EV series is designed with a focus on high cyclic capacity. The cycle life vs. depth of discharge graph shows that at 50% DOD, over 1200 cycles can be achieved. The battery reaches 95% of its capacity after the first cycle and 100% after the third, making it ready for real use almost immediately after charging. RITAR EV12-150S is certified according to ISO 9001, ISO 14001 and ISO 45001.

Ritar International Group – Global leader in energy storage

Founded in 2002, Ritar International Group has over 6,500 employees worldwide and 8 manufacturing bases in China and Vietnam. The company has 11 international logistics centers and representatives in many countries, ensuring fast delivery of products to the global market.

Ritar owns a national laboratory CNAS and over 200 invention patents. With a portfolio of over 1,000 types of products – including OPzV, UPS and lithium batteries – the company serves a wide range of sectors such as renewable energy, telecommunications, railways and data centers.

Ritar is dedicated to innovation and development in the field of safe energy storage, contributing to a sustainable future and the high quality of its products and services.
